AIR CONDITIONING UNIT COMPONENTS
ILLUSTRATION
| *1 | FRONT CENTER UPPER SUSPENSION BRACE SUB-ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| *T1 | Bolt color black: 8.0 N*m (82 kgf*cm, 71 in.*lbf) Bolt color silver: 8.9 N*m (91 kgf*cm, 79 in.*lbf) |
- | - |

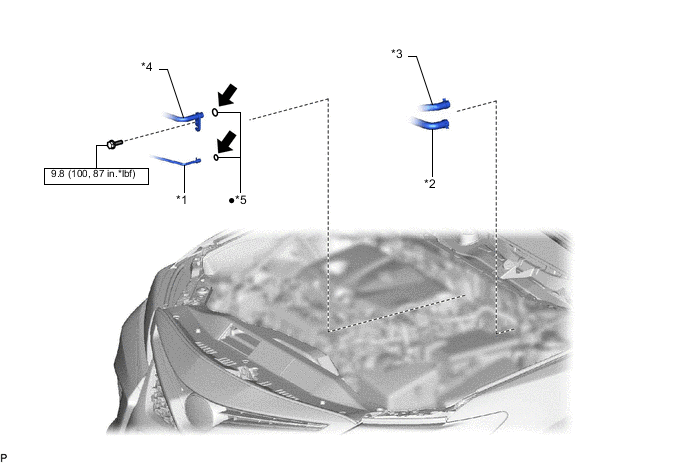

ILLUSTRATION
| *1 | AIR CONDITIONING TUBE AND ACCESSORY ASSEMBLY | *2 | INLET HEATER WATER HOSE |
| *3 | OUTLET HEATER WATER HOSE | *4 | SUCTION PIPE SUB-ASSEMBLY |
| *5 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |

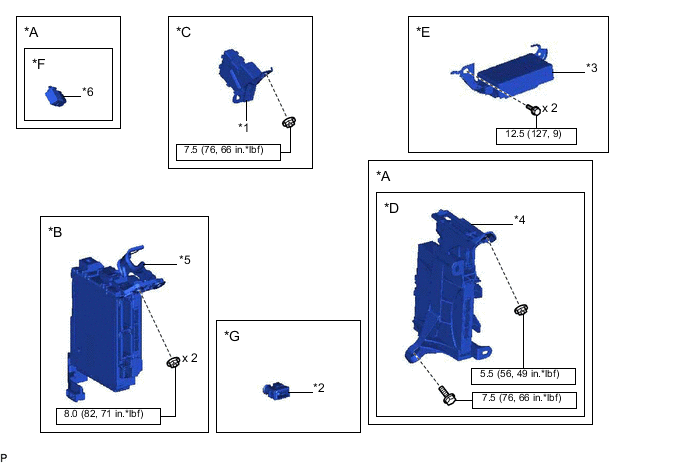

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | w/o Smart Entry and Start System | *D | w/ ECU Integration Box RH |
| *E | w/ Door Control Battery | *F | w/ TOYOTA Parking Assist-sensor System |
| *G | for Automatic Air Conditioning System | - | - |
| *1 | CENTRAL GATEWAY ECU (NETWORK GATEWAY ECU) | *2 | COOLER (ROOM TEMP. SENSOR) THERMISTOR |
| *3 | DOOR CONTROL BATTERY | *4 | ECU INTEGRATION BOX RH |
| *5 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU | *6 | NO. 1 CLEARANCE WARNING BUZZER |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

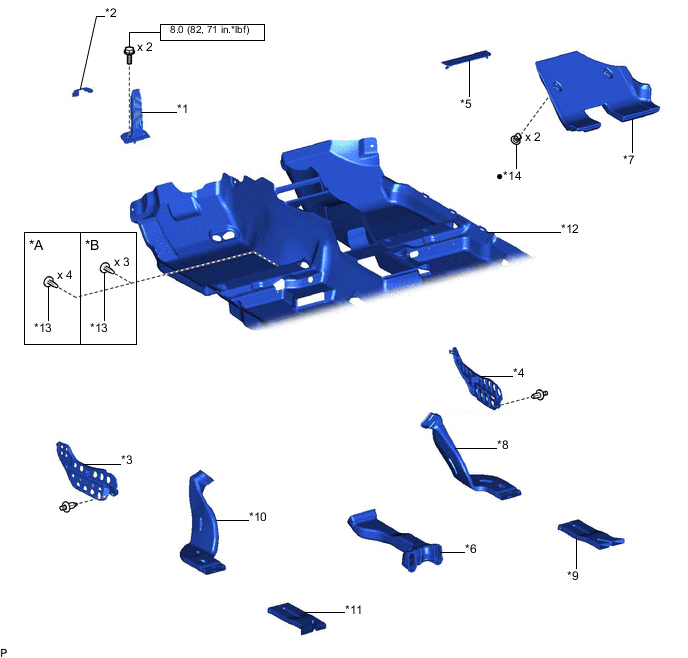

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *1 | ACCELERATOR PEDAL | *2 | ACCELERATOR PEDAL PAD |
| *3 | FLOOR CARPET BRACKET LH | *4 | FLOOR CARPET BRACKET RH |
| *5 | FRONT FLOOR CAUTION PLATE COVER | *6 | NO. 1 CONSOLE BOX DUCT |
| *7 | NO. 3 DASH PANEL INSULATOR PAD | *8 | REAR NO. 1 AIR DUCT |
| *9 | REAR NO. 2 AIR DUCT | *10 | REAR NO. 3 AIR DUCT |
| *11 | REAR NO. 4 AIR DUCT | *12 | FRONT FLOOR CARPET ASSEMBLY |
| *13 | FRONT FLOOR CARPET CLIP | *14 | CLIP |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

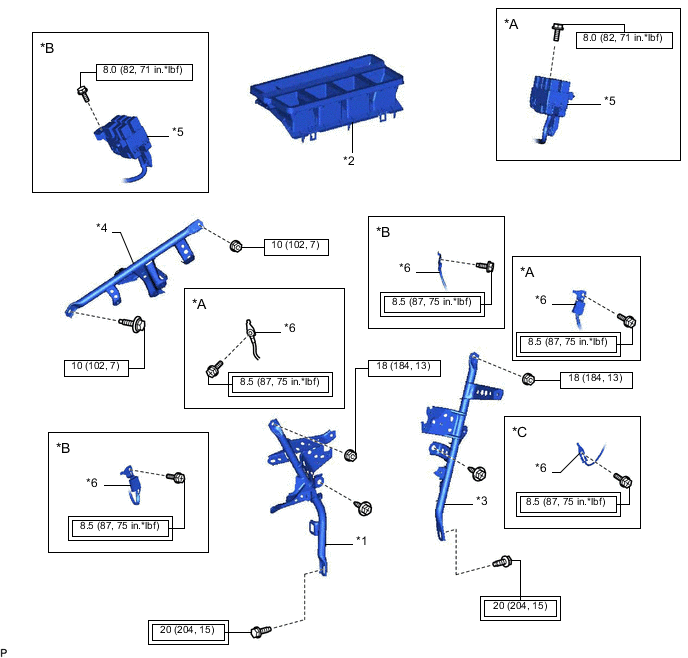

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | w/ PTC Heater | - | - |
| *1 | NO. 1 INSTRUMENT PANEL BRACE SUB-ASSEMBLY | *2 | NO. 2 AIR DUCT SUB-ASSEMBLY |
| *3 | NO. 2 INSTRUMENT PANEL BRACE SUB-ASSEMBLY | *4 | NO. 3 INSTRUMENT PANEL TO COWL BRACE SUB-ASSEMBLY |
| *5 | RELAY BLOCK ASSEMBLY | *6 | EARTH WIRE |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |

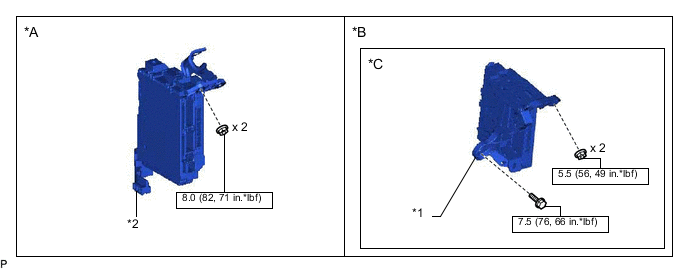

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | w/ ECU Integration Box RH | - | - |
| *1 | ECU INTEGRATION BOX RH | *2 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY WITH MAIN BODY ECU |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

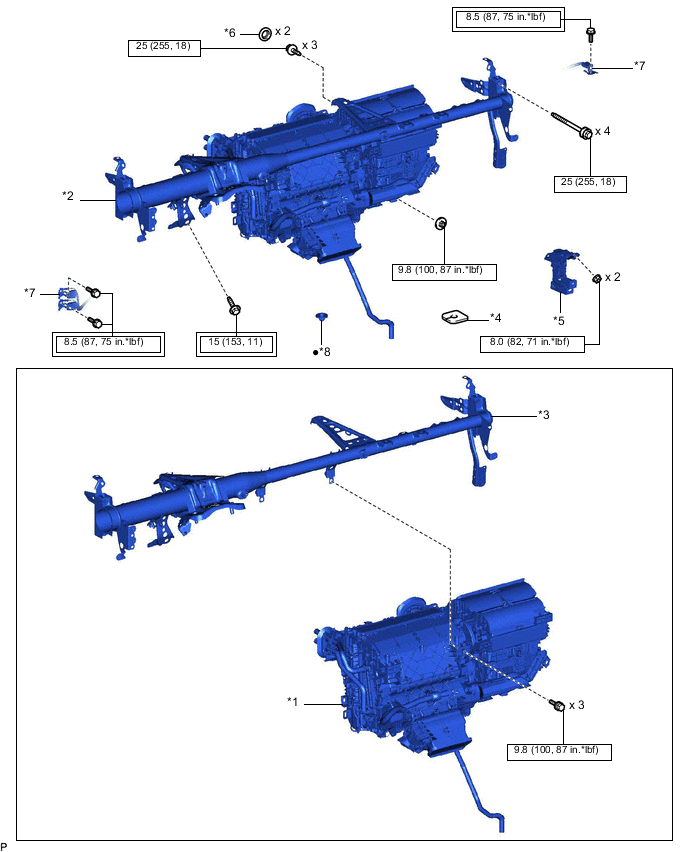

ILLUSTRATION
| *1 | AIR CONDITIONER UNIT ASSEMBLY | *2 | INSTRUMENT PANEL REINFORCEMENT ASSEMBLY WITH AIR CONDITIONER UNIT ASSEMBLY |
| *3 | INSTRUMENT PANEL REINFORCEMENT ASSEMBLY | *4 | FRONT FLOOR MAT |
| *5 | CONNECTOR HOLDER | *6 | HOLE PLUG |
| *7 | EARTH WIRE | *8 | COOLER UNIT DRAIN HOSE GROMMET |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

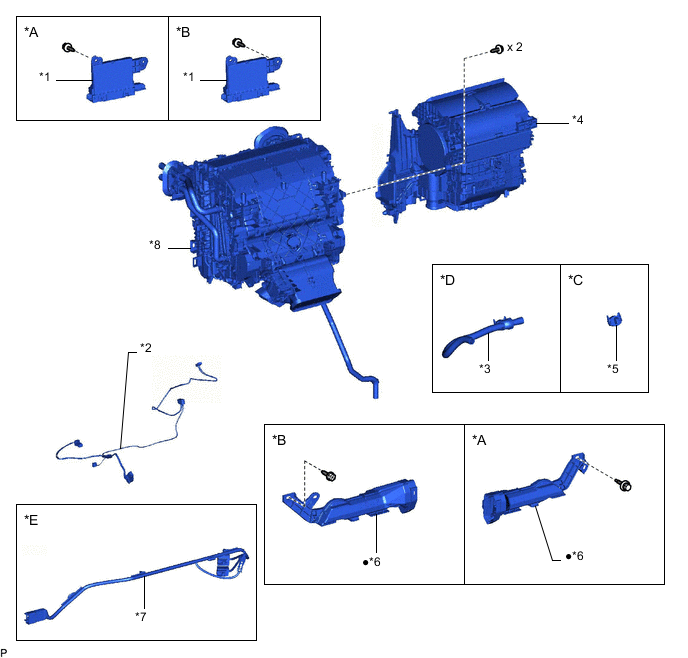

ILLUSTRATION
| *A | for LHD | *B | for RHD |
| *C | for Manual Air Conditioning System | *D | for Automatic Air Conditioning System |
| *E | w/ PTC Heater | - | - |
| *1 | AIR CONDITIONING AMPLIFIER ASSEMBLY | *2 | AIR CONDITIONING HARNESS ASSEMBLY |
| *3 | ASPIRATOR | *4 | BLOWER ASSEMBLY |
| *5 | GROMMET | *6 | NO. 2 AIR DUCT |
| *7 | NO. 2 INSTRUMENT PANEL WIRE | *8 | AIR CONDITIONING RADIATOR ASSEMBLY |
| ● | Non-reusable part | - | - |

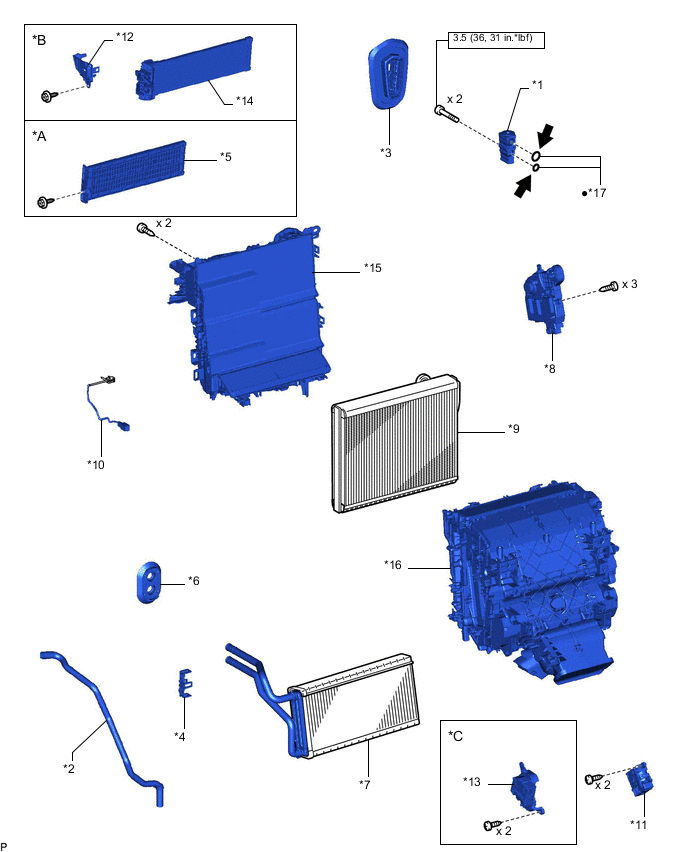

ILLUSTRATION
| *A | w/o PTC Heater | *B | w/ PTC Heater |
| *C | for 3 Zone Type | - | - |
| *1 | COOLER EXPANSION VALVE | *2 | DRAIN COOLER HOSE |
| *3 | GROMMET SUB-ASSEMBLY | *4 | HEATER CLAMP |
| *5 | HEATER COVER | *6 | HEATER PIPE GROMMET |
| *7 | HEATER RADIATOR UNIT SUB-ASSEMBLY | *8 | NO. 1 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY |
| *9 | NO. 1 COOLER EVAPORATOR SUB-ASSEMBLY | *10 | NO. 1 COOLER THERMISTOR |
| *11 | NO. 2 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *12 | NO. 2 HEATER COVER |
| *13 | NO. 3 AIR CONDITIONING RADIATOR DAMPER SERVO SUB-ASSEMBLY | *14 | QUICK HEATER ASSEMBLY |
| *15 | UPPER HEATER CASE | *16 | LOWER HEATER CASE |
| *17 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
| |
Compressor oil ND-OIL 8 or equivalent | - | - |
