HYBRID CONTROL SYSTEM Shut Down Signal Circuit
| DTC Code | DTC Name |
|---|---|
| Shut Down Signal Circuit |
DESCRIPTION
The cause of the malfunction may be a shutdown signal.
Check whether there is a shutdown signal +B short circuit.
Area |
Inspection |
Step |
|---|---|---|
HSDN terminal voltage |
Check that the HSDN terminal voltage decreases while READY OFF (IG ON). If the voltage is low, the shutdown signal circuit is normal. |
1 |
Hybrid vehicle control ECU, inverter |
If there is a shutdown signal malfunction, check for whether there is a hybrid vehicle control ECU or inverter malfunction. |
2, 3 |
SYSTEM DESCRIPTION
Power supply to the motor is cut off due to a shutdown signal sent from the hybrid vehicle control ECU to the motor generator control ECU (MG ECU).

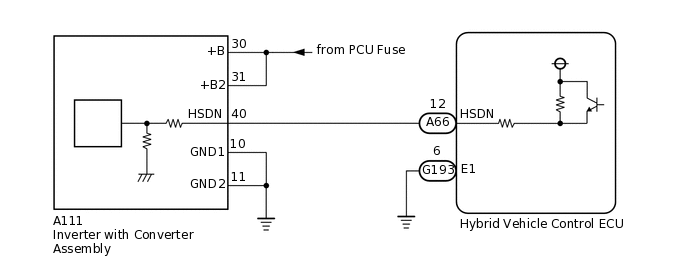

WIRING DIAGRAM
CAUTION / NOTICE / HINT
This step is referenced from the procedures for each DTC.
If the inspection results below are normal, perform the next procedure for the referenced DTC.
Before inspecting the high-voltage system or disconnecting the low voltage connector of the inverter with converter assembly, take safety precautions such as wearing insulated gloves and removing the service plug grip to prevent electrical shocks. After removing the service plug grip, put it in your pocket to prevent other technicians from accidentally reconnecting it while you are working on the high-voltage system.
After removing the service plug grip, wait for at least 10 minutes before touching any of the high-voltage connectors or terminals. After waiting for 10 minutes, check the voltage at the terminals in the inspection point in the inverter with converter assembly. The voltage should be 0 V before beginning work.
Tip:Waiting for at least 10 minutes is required to discharge the high-voltage capacitor inside the inverter with converter assembly.
After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work.
PROCEDURE
CHECK HYBRID VEHICLE CONTROL ECU
Turn the power switch on (IG).
-

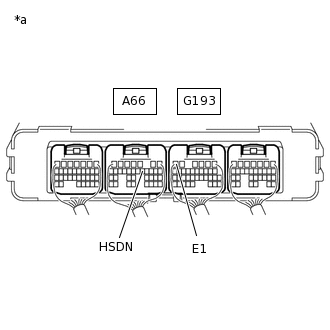

*a
Component with harness connected
(Hybrid Vehicle Control ECU)
Measure the voltage according to the value(s) in the table below.
Standard Voltage
Tester Connection
Condition
Specified Condition
A66-12 (HSDN) - G193-6 (E1)
Power switch on (IG)
Below 4.5 V
Turn the power switch off.
Result
Proceed to
OK
NG
OK SHUTDOWN SIGNAL CIRCUIT NORMAL (PERFORM NEXT STEP FOR REFERENCED DTC)
CHECK HARNESS AND CONNECTOR (HYBRID VEHICLE CONTROL ECU - INVERTER WITH CONVERTER ASSEMBLY)
CAUTION:Be sure to wear insulated gloves.
Check that the service plug grip is not installed.
Note:After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.
Disconnect the A65 and A66 hybrid vehicle control ECU connector.
Disconnect the A111 inverter with converter assembly connector.
Connect the cable to the negative (-) auxiliary battery terminal.
Turn the power switch on (IG).
Measure the voltage according to the value(s) in the table below.

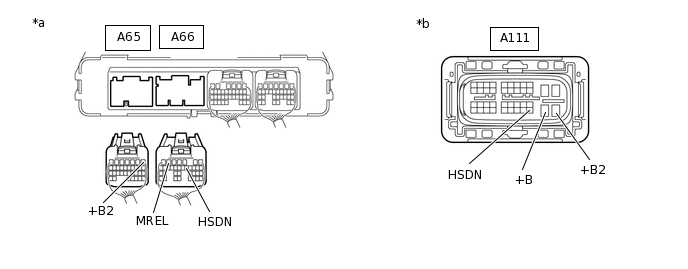

*a
Rear view of wire harness connector
(to Hybrid Vehicle Control ECU)
*b
Front view of wire harness connector
(to Inverter with Converter Assembly)
Standard Voltage
Tester Connection
Condition
Specified Condition
A111-40 (HSDN) or A66-12 (HSDN) - Body ground
Power switch on (IG)
Below 1 V
Note:Turning the power switch on (IG) with the hybrid vehicle control ECU and inverter with converter assembly connector disconnected causes other DTCs to be stored. Clear the DTCs after performing this inspection.
Turn the power switch off.
Disconnect the cable from the negative (-) auxiliary battery terminal.
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
A111-40 (HSDN) - A111-30 (+B)
Power switch off
10 kΩ or higher
A111-40 (HSDN) - A111-31 (+B2)
Power switch off
10 kΩ or higher
A66-12 (HSDN) - A65-1 (+B2)
Power switch off
10 kΩ or higher
A66-12 (HSDN) - A66-6 (MREL)
Power switch off
10 kΩ or higher
Reconnect the A111 inverter with converter assembly connector.
Reconnect the A65 and A66 hybrid vehicle control ECU connector.
Result
Proceed to
OK
NG
NG REPAIR OR REPLACE HARNESS OR CONNECTOR
CHECK INVERTER WITH CONVERTER ASSEMBLY
CAUTION:Be sure to wear insulated gloves.
Check that the service plug grip is not installed.
Note:After removing the service plug grip, do not turn the power switch on (READY), unless instructed by the repair manual because this may cause a malfunction.
Disconnect the A111 inverter with converter assembly connector.
-

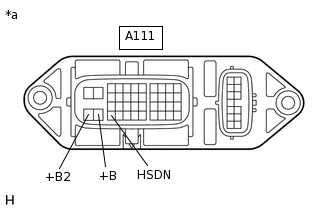

*a
Component without harness connected
(Inverter with Converter Assembly)
Measure the resistance according to the value(s) in the table below.
Standard Resistance
Tester Connection
Condition
Specified Condition
A111-40 (HSDN) - A111-30 (+B)
Power switch off
5 kΩ or higher
A111-40 (HSDN) - A111-31 (+B2)
Power switch off
5 kΩ or higher
Reconnect the A111 inverter with converter assembly connector.
Result
Proceed to
OK
NG
