THERMOSTAT INSTALLATION

PROCEDURE

  1. INSTALL THERMOSTAT

    1. Install a new gasket to the thermostat.

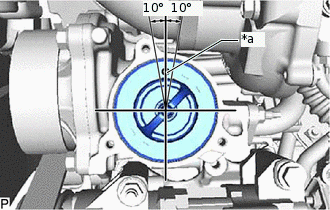

    2. A328542C01

      *a

      Jiggle Valve

      Install the thermostat with the jiggle valve facing upward.

      Tip:

      The jiggle valve may be set to within 10° on either side of the prescribed position.

  2. CONNECT WATER INLET

    1. Connect the water inlet with the 2 nuts.

      10 N*m

      102 kgf*cm

      7 ft.*lbf

  3. ADD ENGINE COOLANT

    Click here

  4. INSPECT FOR COOLANT LEAK

    Click here
