REAR CRANKSHAFT OIL SEAL INSTALLATION

PROCEDURE

  1. INSTALL REAR ENGINE OIL SEAL

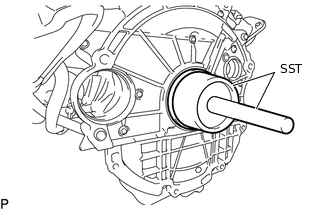

    1. A318529E01

      Using SST, tap in a new rear engine oil seal until its surface is flush with the rear oil seal retainer edge.

      09608-36010

      09950-70010

      09951-07100

      Note:

      Do not tap in the rear engine oil seal at an angle.

  2. INSTALL FLYWHEEL WITH DAMPER ASSEMBLY

    1. Install the crankshaft position sensor plate to the crankshaft.

    2. Temporarily install the flywheel with damper assembly with 8 new bolts.

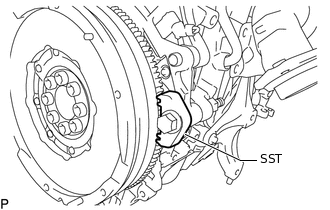

    3. A315454E02

      Using SST, secure the flywheel with damper assembly.

      SST

      PZ4TB-04939-38

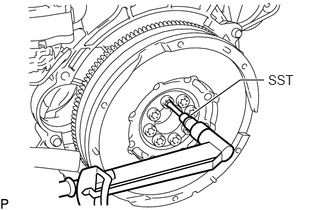

    4. A318536E01

      Using SST, tighten the 8 bolts.

      SST

      PZ4TB-04910-18

      120 N*m

      1224 kgf*cm

      89 ft.*lbf

    5. Remove SST.

  3. INSTALL CLUTCH DISC ASSEMBLY

    Click here

  4. INSTALL CLUTCH COVER ASSEMBLY

    Click here

  5. INSPECT AND ADJUST CLUTCH COVER ASSEMBLY

    Click here

  6. INSTALL MANUAL TRANSAXLE ASSEMBLY

    Click hereClick here
