ROCKER PANEL MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE FRONT SIDE MUDGUARD LH

    B221145

    1. Remove the 2 screws and front side mudguard.

  2. REMOVE REAR WHEEL HOUSE FRONT PLATE LH

    B221146

    1. Remove the 2 screws and clip.

    2. Detach the claw and remove the rear wheel house front plate.

  3. REMOVE ROCKER PANEL MOULDING LH

    1. Remove the 7 grommets.

      B221147

    2. Put protective tape around the rocker panel moulding.

    3. Remove the 2 screws.

    4. Detach the 8 clips and remove the rocker panel moulding.

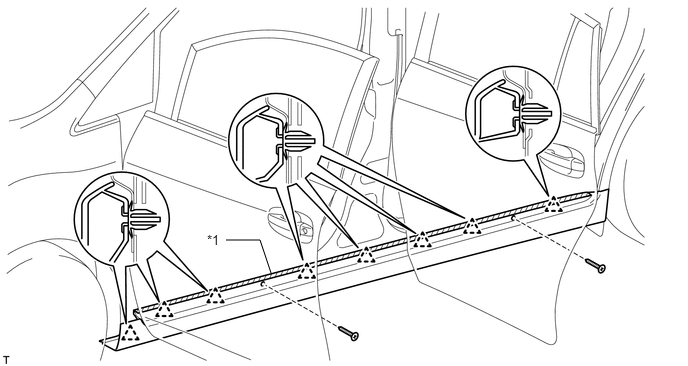

      B221148E02
      Table 1. Text in Illustration

      *1

      Protective Tape

      -

      -
