KNEE AIRBAG ASSEMBLY(for Driver Side) COMPONENTS
ILLUSTRATION
| *1 | NEGATIVE BATTERY TERMINAL | *2 | LUGGAGE COMPARTMENT MAT SUB-ASSEMBLY |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |

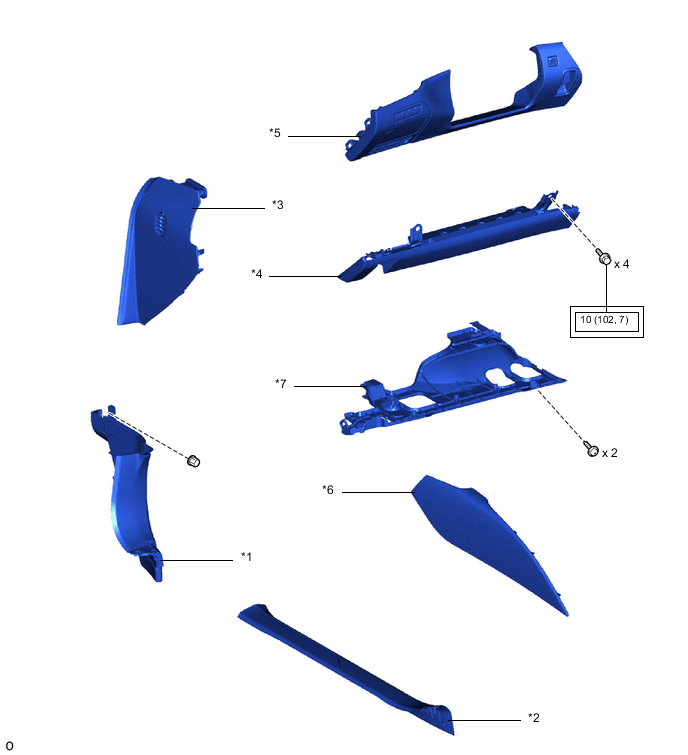

ILLUSTRATION
| *1 | COWL SIDE TRIM BOARD LH | *2 | FRONT DOOR SCUFF PLATE LH |
| *3 | INSTRUMENT SIDE PANEL LH | *4 | LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY |
| *5 | LOWER NO. 1 INSTRUMENT PANEL PAD SUB-ASSEMBLY | *6 | NO. 1 CONSOLE UPPER PANEL GARNISH |
| *7 | NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
