ELECTRONIC SHIFT LEVER SYSTEM

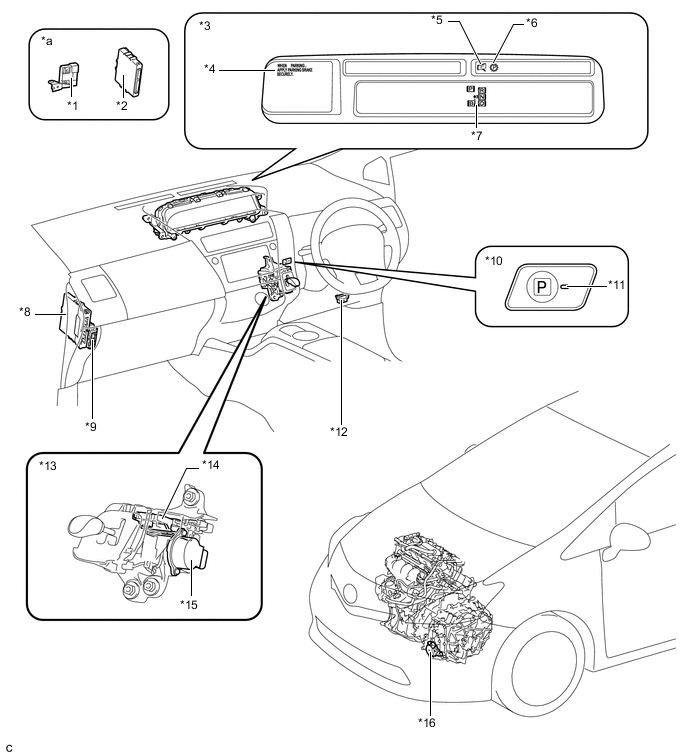

| *1 | Combination Meter Sub-assembly - Buzzer |
*2 | Shift Position Indicator |
| *3 | P Position Request Indicator Light | *4 | P Position Control System Warning Indicator Light |
| *5 | P Position Control System Advisory Message | *6 | P Position Switch (Transmission Shift Main Switch) |
| *7 | P Position Indicator Light | *8 | ID Code Box (Immobiliser Code ECU) |
| *9 | Certification ECU (Smart Key ECU Assembly) | *10 | DLC3 |
| *11 | Shift Lever (Shift Lock Control Unit Assembly) | *12 | Shift Lever Position Sensor (Shift Sensor) |
| *13 | Shift Lever Position Sensor (Select Sensor) | *14 | Transmission Control ECU Assembly |
| *15 | Power Management Control ECU | *16 | Shift Control Actuator Assembly |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
| *1 | ID Code Box (Immobiliser Code ECU) | *2 | Certification ECU (Smart Key ECU Assembly) |
| *3 | Combination Meter Sub-assembly - Buzzer |
*4 | P Position Control System Advisory Message |
| *5 | P Position Request Indicator Light | *6 | P Position Control System Warning Indicator Light |
| *7 | Shift Position Indicator | *8 | Power Management Control ECU |
| *9 | Transmission Control ECU Assembly | *10 | P Position Switch (Transmission Shift Main Switch) |
| *11 | P Position Indicator Light | *12 | DLC3 |
| *13 | Shift Lever (Shift Lock Control Unit Assembly) | *14 | Shift Lever Position Sensor (Select Sensor) |
| *15 | Shift Lever Position Sensor (Shift Sensor) | *16 | Shift Control Actuator Assembly |
| *a | Refer to the Service Bulletin for the installation position of the part. | - | - |
