SEAT HEATER SWITCH REMOVAL

PROCEDURE

1. PRECAUTION

   CAUTION:

   After turning the power switch off, waiting time may be required before disconnecting the cable from the negative (-) auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) auxiliary battery terminal notices before proceeding with work Click here.

2. REMOVE DECK BOARD ASSEMBLY

   Click here

3. REMOVE NO. 1 DECK BOARD

   Click here

4. REMOVE NO. 2 DECK BOARD

   Click here

5. REMOVE REAR DECK FLOOR BOX

   Click here

6. REMOVE DECK FLOOR BOX RH

   Click here

7. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

   CAUTION:

   Wait at least 90 seconds after disconnecting the cable from the negative (-) auxiliary battery terminal to disable the SRS system.

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected Click here.

8. REMOVE CONSOLE BOX ASSEMBLY

   Click here

9. REMOVE INTEGRATION CONTROL AND PANEL

   Click here

10. REMOVE INSTRUMENT PANEL BOX ASSEMBLY

    Click here

11. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY

    Click here

12. REMOVE SEAT HEATER SWITCH




    1.

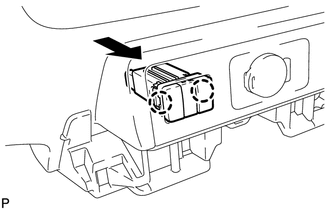

       Disengage the 2 claws and remove the seat heater switch as shown in the illustration.
