VEHICLE APPROACHING SPEAKER ECU INSTALLATION

PROCEDURE

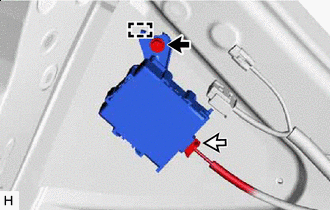

1. INSTALL VEHICLE APPROACHING SPEAKER CONTROLLER

   1.

      	Bolt
      	Connector

      Connect the connector.

   2. Attach the guide to install the vehicle approaching speaker controller with the bolt.

      8.0 N*m

      82 kgf*cm

      71 in.*lbf

2. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY LH

   Click here

3. INSTALL SEAT BELT ANCHOR COVER CAP

   Click hereClick here

4. INSTALL DECK TRIM SIDE PANEL ASSEMBLY LH

   Click here

5. INSTALL DECK TRIM SERVICE HOLE COVER

   Click here

6. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

   Click here

7. INSTALL REAR DOOR SCUFF PLATE LH

   Click here

8. INSTALL REAR SEAT ASSEMBLY

   Click here

9. INSTALL REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

   Click here

10. INSTALL REAR DECK TRIM COVER (for Full Size Spare Tire)

    Click here

11. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

    Click here

12. INSTALL DECK FLOOR BOX LH

    Click here

13. INSTALL DECK TRIM SIDE COVER BASE LH

    Click here

14. INSTALL REAR NO. 3 FLOOR BOARD

    Click here

15. INSTALL DECK BOARD ASSEMBLY

    Click here

16. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

17. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here
