REAR SEAT INNER BELT ASSEMBLY INSTALLATION

PROCEDURE

  1. INSTALL REAR SEAT CENTER LAP TYPE BELT ASSEMBLY LH

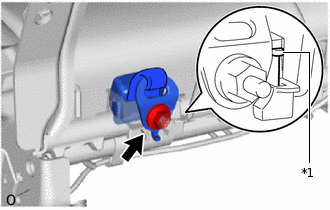

    1. B378705C02

      *1

      Protruding part

      Install the rear seat center lap type belt assembly LH with the nut.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

      Note:

      The anchor part of the rear seat center lap type belt assembly LH must not overlap the protruding part.

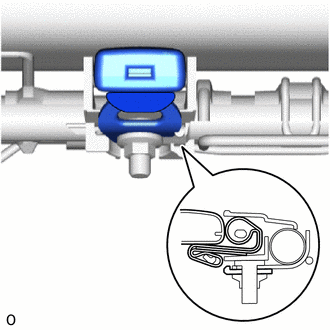

    2. B378706

      Install the rear seat center lap type belt assembly LH to the rear seat belt holder.

  2. INSTALL REAR SEAT INNER BELT ASSEMBLY LH

    1. Attach the 2 hooks.

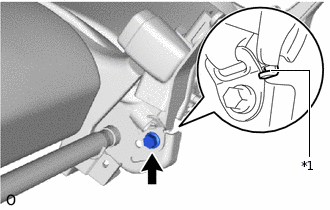

    2. B378707C02

      *1

      Protruding part

      Install the rear seat inner belt assembly LH with the bolt.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

      Note:

      The anchor part of the rear seat inner belt assembly LH must not overlap the protruding part.

    3. B380241C01

      *A

      w/o Seat Heater System

      *B

      w/ Seat Heater System

      w/ Seat Belt Warning System:

      1. w/o Seat Heater System:

        1. Attach the 2 clamps.

      2. w/ Seat Heater System:

        1. Attach the clamp.

        2. Connect the connector.

  3. INSTALL REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

    1. Attach the 2 hooks.

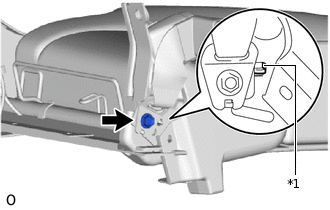

    2. B378708C02

      *1

      Protruding part

      Install the rear seat inner with center belt assembly RH with the bolt.

      42 N*m

      428 kgf*cm

      31 ft.*lbf

      Note:

      The anchor part of the rear seat inner with center belt assembly RH must not overlap the protruding part.

    3. B380240C01

      *A

      w/o Seat Heater System

      *B

      w/ Seat Heater System

      w/ Seat Belt Warning System:

      1. w/o Seat Heater System:

        1. Attach the 2 clamps.

      2. w/ Seat Heater System:

        1. Attach the clamp.

        2. Connect the connector.

  4. INSTALL REAR SEAT ASSEMBLY LH
