PARKING BRAKE LEVER INSTALLATION

PROCEDURE

1. INSTALL PARKING BRAKE SWITCH ASSEMBLY

   Click here

2. CONNECT NO. 1 PARKING BRAKE CABLE ASSEMBLY

   1. Pass the No. 1 parking brake cable assembly through the parking brake lever sub-assembly.

   2.

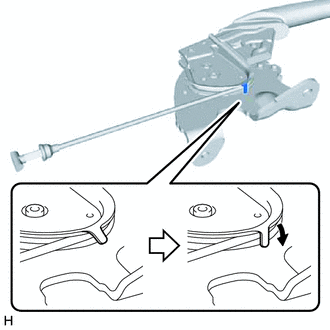

      Bend the parking brake lever claw.

3. INSTALL PARKING BRAKE LEVER SUB-ASSEMBLY

   1. Install the parking brake lever sub-assembly (with the No. 1 parking brake cable assembly) with the 2 bolts.

      14.5 N*m

      148 kgf*cm

      11 ft.*lbf

   2. Connect the No. 1 parking brake cable assembly to the parking brake equalizer.

   3. Temporarily install the No. 1 cable adjusting nut and lock nut.

   4. Connect the parking brake switch connector.

4. CHECK PARKING BRAKE LEVER TRAVEL

   Click here

5. ADJUST PARKING BRAKE LEVER TRAVEL

   Click here

6. INSTALL NO. 2 CONSOLE BOX MOUNTING BRACKET

   1. Install the No. 2 console box mounting bracket with the 4 bolts.

      8.5 N*m

      87 kgf*cm

      75 in.*lbf

7. INSTALL REAR CONSOLE BOX SUB-ASSEMBLY

   Click here
