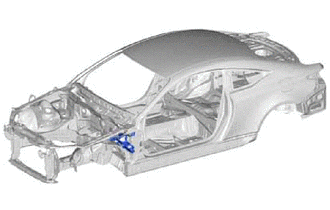

FRONT BODY PILLAR LOWER GUSSET ASSEMBLY REPLACEMENT

A01O6TQ

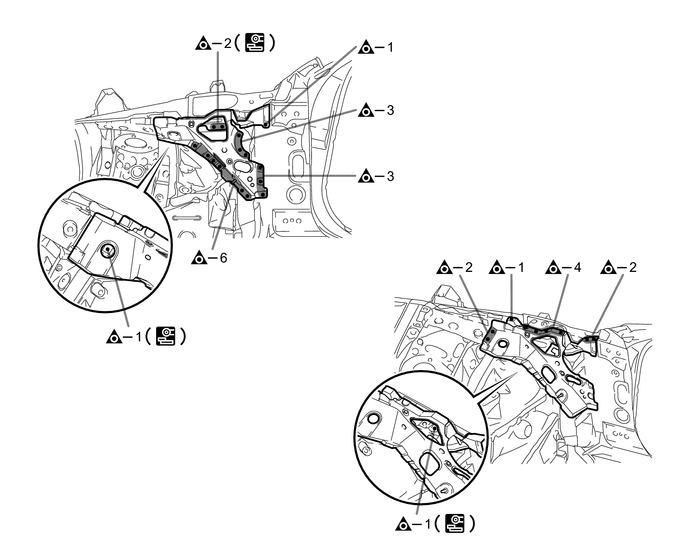

  1. REMOVAL

    Symbol Meaning
    B008JPV Remove Weld Points
    B008JQZ Cut with Disc Sander etc.
    A01O6RQ

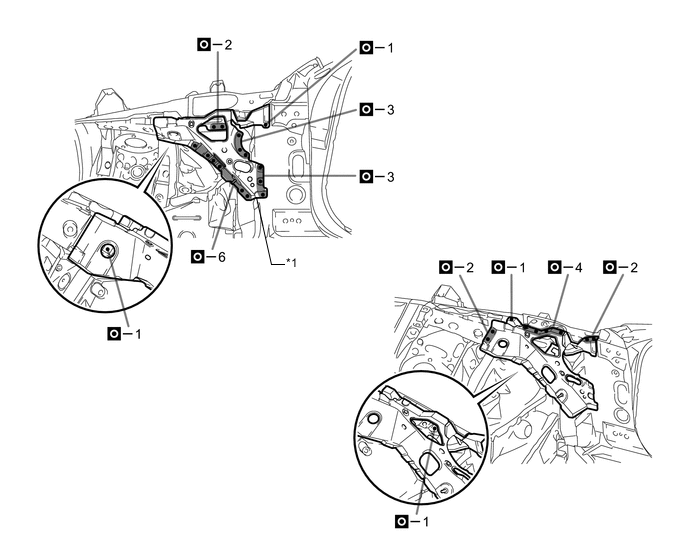

  2. INSTALLATION

    Symbol Meaning
    B008JQK Plug Weld

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

      A01O6L6C01
      *1 FRONT BODY PILLAR GUSSET LOWER - -

    2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.
