WINDSHIELD DEICER SWITCH REMOVAL

PROCEDURE

1. REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY

   Click here

2. REMOVE PARKING BRAKE HOLE COVER SUB-ASSEMBLY

   Click here

3. REMOVE UPPER CONSOLE PANEL SUB-ASSEMBLY

   Click here

4. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER LH

   Click here

5. REMOVE INNER NO. 1 INSTRUMENT PANEL BRACKET COVER RH

   Click here

6. REMOVE UPPER REAR CONSOLE PANEL SUB-ASSEMBLY

   Click here

7. REMOVE CONSOLE BOX CARPET

   Click here

8. REMOVE LOWER CENTER INSTRUMENT PANEL FINISH PANEL

   Click here

9. REMOVE REAR CONSOLE BOX SUB-ASSEMBLY

   Click here

10. REMOVE LOWER NO. 2 INSTRUMENT PANEL FINISH PANEL

    Click hereClick here

11. REMOVE FRONT WIPER DEICER SWITCH

    1.

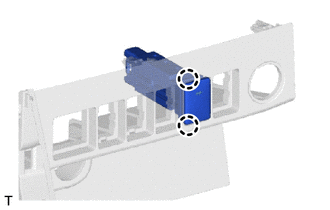

       Detach the 2 claws and remove the front wiper deicer switch.
