KNOCK SENSOR INSTALLATION

PROCEDURE

1. INSTALL KNOCK CONTROL SENSOR

   Tech Tips

   Perform "Inspection After Repair" after replacing the knock control sensor.

   Click here



   1.

      *a	Top
      *b	Engine Front
      *c	7°
      *d	10°

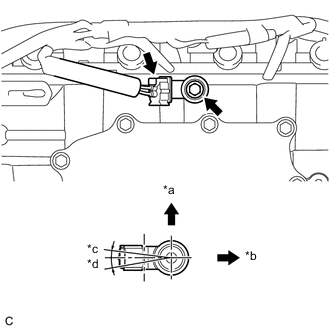

      Install the knock control sensor to the cylinder block sub-assembly with the bolt so that the knock control sensor installation position is as shown in the illustration.

      Torque:

      20 N*m  { 204 kgf*cm, 15 ft.*lbf }

      Note

      If the knock control sensor has been struck or dropped, replace it.

   2. Connect the knock control sensor connector.

2. PERFORM INITIALIZATION




   1. Perform "Inspection After Repair" after replacing the knock control sensor.

      Click here
