СИСТЕМА МЕХАНИЧЕСКОЙ ТРАНСМИССИИ


  1. CONSTRUCTION

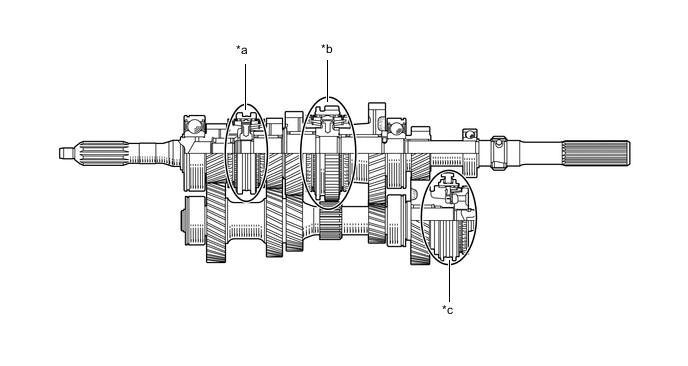

    1. A synchromesh mechanism is used for each gear.

      A01KXEWC01
      *a Synchromesh Mechanism for 3rd and 4th Gears *b Synchromesh Mechanism for 1st and 2nd Gears
      *c Synchromesh Mechanism for 5th and Reverse Gears - -
      Synchromesh Type
      Gear 1st 2nd 3rd 4th 5th Reverse
      Synchromesh Type Triple-cone Triple-cone Triple-cone Single-cone Lever Lever
