STARTER(w/ Stop And Start System) INSTALLATION

PROCEDURE

  1. INSTALL STARTER ASSEMBLY

    1. Install the starter assembly with the 2 bolts.

      37 N*m

      377 kgf*cm

      27 ft.*lbf

    2. Engage the wire harness clamp.

    3. Connect the starter assembly connector.

    4. Connect terminal 30 with the nut.

      12.5 N*m

      127 kgf*cm

      9 ft.*lbf

    5. Close the terminal cap.

  2. INSTALL FLYWHEEL HOUSING SIDE COVER

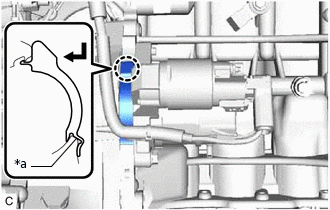

    1. A327006C01

      *a

      Protruding Portion

      Insert the protruding portion of the flywheel housing side cover into the end of the cylinder block and while pushing it along the cylinder block, engage the claw with the cylinder block.

      Note:

      • Make sure that the claw makes a click sound, indicating a tight fit.

      • Replace the flywheel housing side cover with a new one if it does not engage securely or is deformed.

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.
