LANE DEPARTURE ALERT SYSTEM PARTS LOCATION

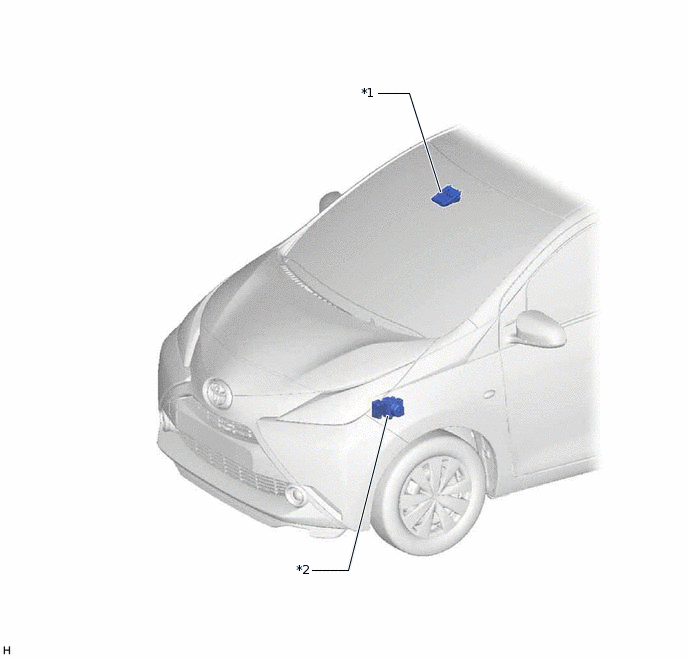

ILLUSTRATION

A353111C01

*1

PRE-CRASH SAFETY CITY SENSOR

*2

BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU)

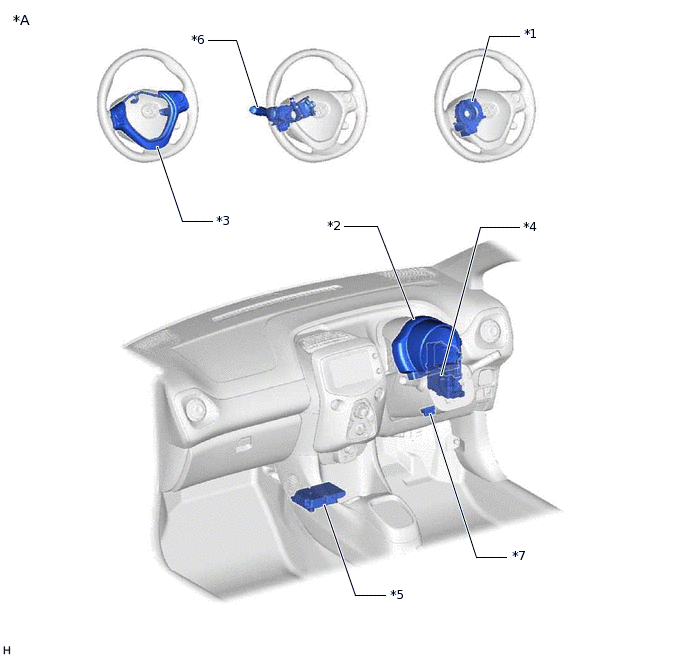

ILLUSTRATION

A353112C01

*A

for RHD

-

-

*1

SPIRAL CABLE SUB-ASSEMBLY (STEERING ANGLE SENSOR)

*2

COMBINATION METER ASSEMBLY

- LDA BUZZER

- LANE DEPARTURE ALART INDICATOR LIGHT

*3

STEERING PAD SWITCH ASSEMBLY

- LANE DEPARTURE ALERT SWITCH

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 1 FUSE

*5

AIRBAG SENSOR ASSEMBLY (YAW RATE AND ACCELERATION SENSOR)

*6

HEADLIGHT DIMMER SWITCH ASSEMBLY

*7

DLC3

-

-

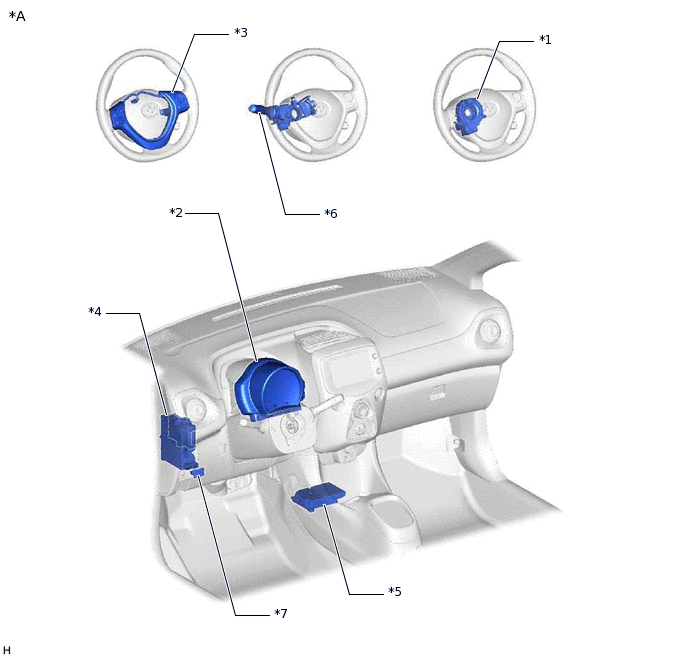

ILLUSTRATION

A353113C01

*A

for LHD

-

-

*1

SPIRAL CABLE SUB-ASSEMBLY (STEERING ANGLE SENSOR)

*2

COMBINATION METER ASSEMBLY

- LDA BUZZER

- LANE DEPARTURE ALART INDICATOR LIGHT

*3

STEERING PAD SWITCH ASSEMBLY

- LANE DEPARTURE ALERT SWITCH

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 1 FUSE

*5

AIRBAG SENSOR ASSEMBLY (YAW RATE AND ACCELERATION SENSOR)

*6

HEADLIGHT DIMMER SWITCH ASSEMBLY

*7

DLC3

-

-
