TIRE PRESSURE WARNING SYSTEM PARTS LOCATION

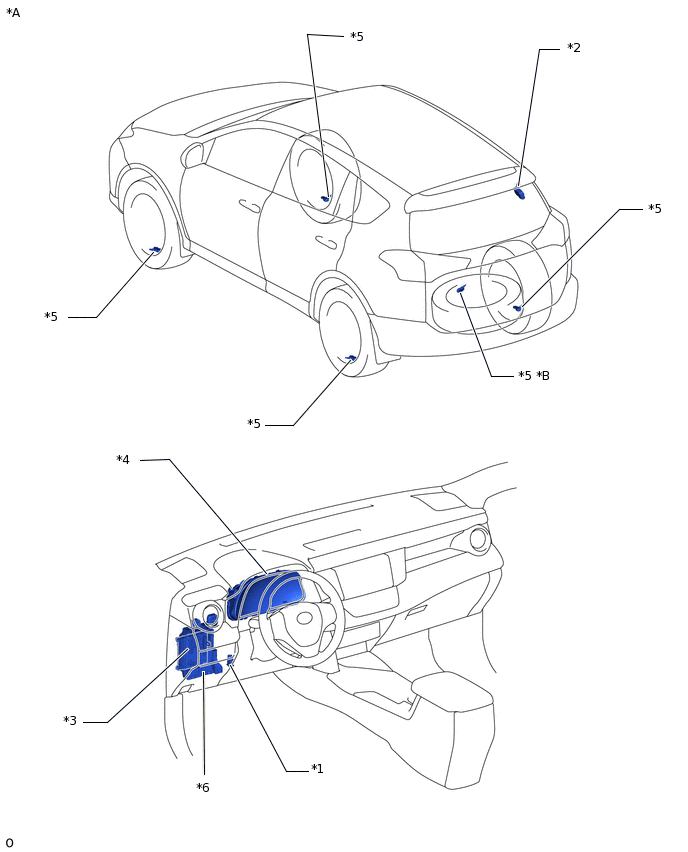

ILLUSTRATION

C276866C07

*A

for LHD

*B

w/ Full Size Spare Tire

*1

TIRE PRESSURE WARNING RESET SWITCH

*2

TIRE PRESSURE WARNING ECU AND RECEIVER

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

COMBINATION METER ASSEMBLY

-TIRE PRESSURE WARNING LIGHT

*5

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 2 FUSE

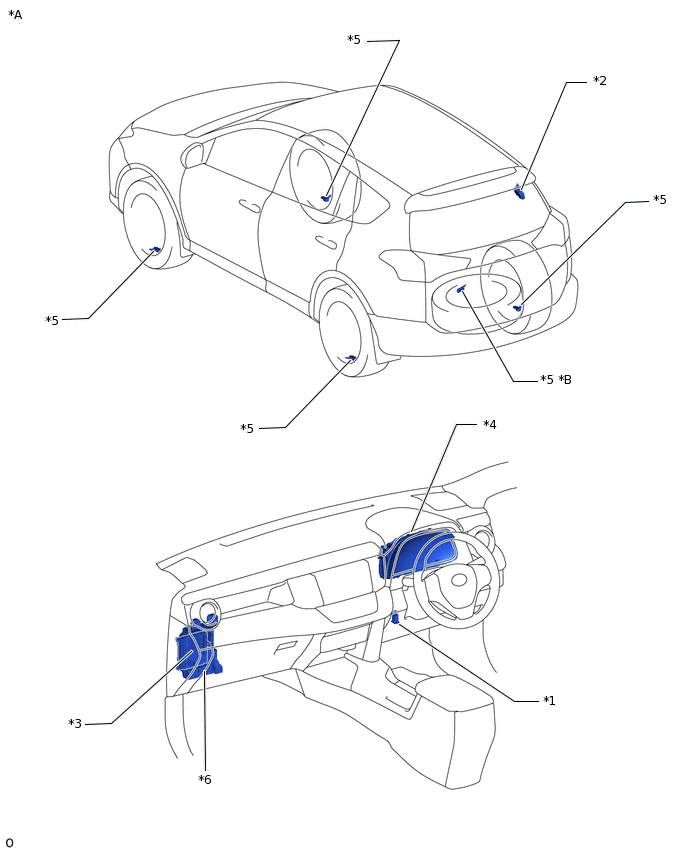

ILLUSTRATION

C276867C03

*A

for RHD

*B

w/ Full Size Spare Tire

*1

TIRE PRESSURE WARNING RESET SWITCH

*2

TIRE PRESSURE WARNING ECU AND RECEIVER

*3

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*4

COMBINATION METER ASSEMBLY

-TIRE PRESSURE WARNING LIGHT

*5

TIRE PRESSURE WARNING VALVE AND TRANSMITTER

*6

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

- ECU-IG NO. 2 FUSE
