STEERING GEAR COMPONENTS

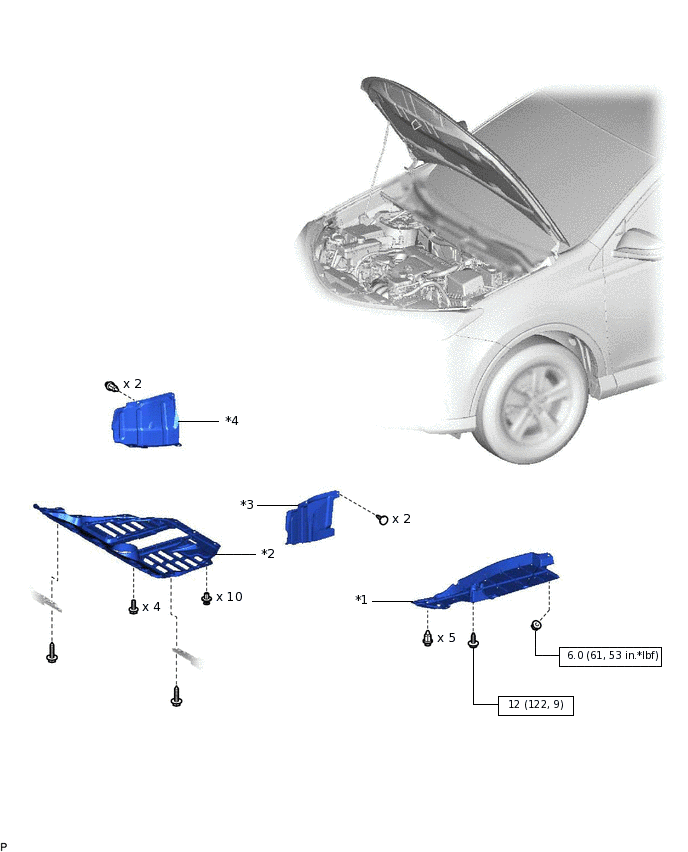

ILLUSTRATION
*1 |
FRONT FLOOR COVER |
*2 |
NO. 1 ENGINE UNDER COVER |
*3 |
REAR ENGINE UNDER COVER LH |
*4 |
REAR ENGINE UNDER COVER RH |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |

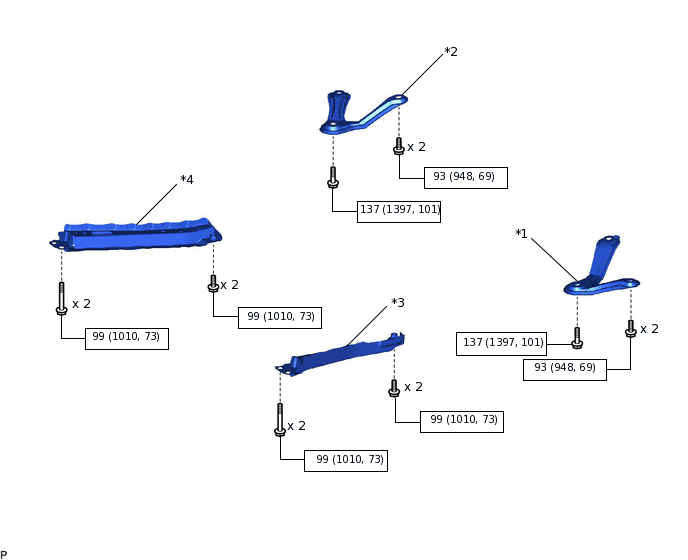

ILLUSTRATION
*1 |
FRONT SUSPENSION MEMBER REAR BRACE LH |
*2 |
FRONT SUSPENSION MEMBER REAR BRACE RH |
*3 |
FRONT SUSPENSION MEMBER REINFORCEMENT LH |
*4 |
FRONT SUSPENSION MEMBER REINFORCEMENT RH |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |

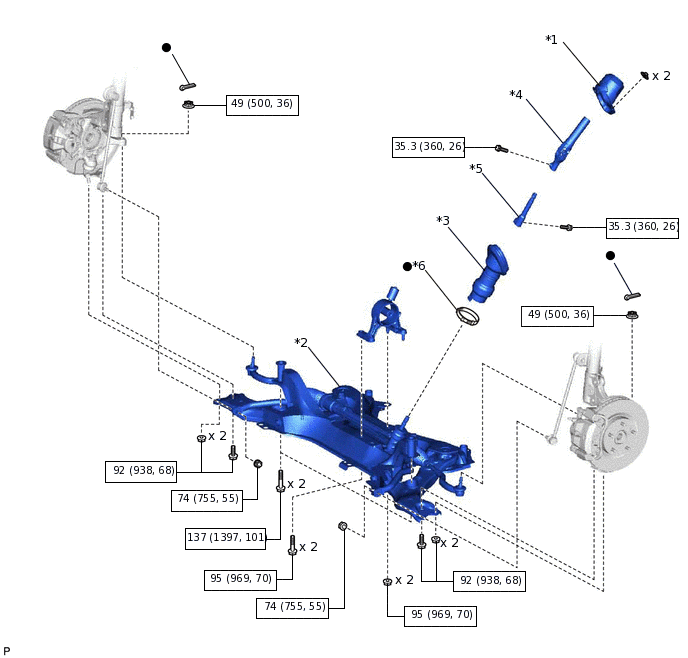

ILLUSTRATION
*1 |
COLUMN HOLE COVER SILENCER SHEET |
*2 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*3 |
NO. 1 STEERING COLUMN HOLE COVER SUB-ASSEMBLY |
*4 |
NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY |
*5 |
STEERING INTERMEDIATE SHAFT |
*6 |
Clamp |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |

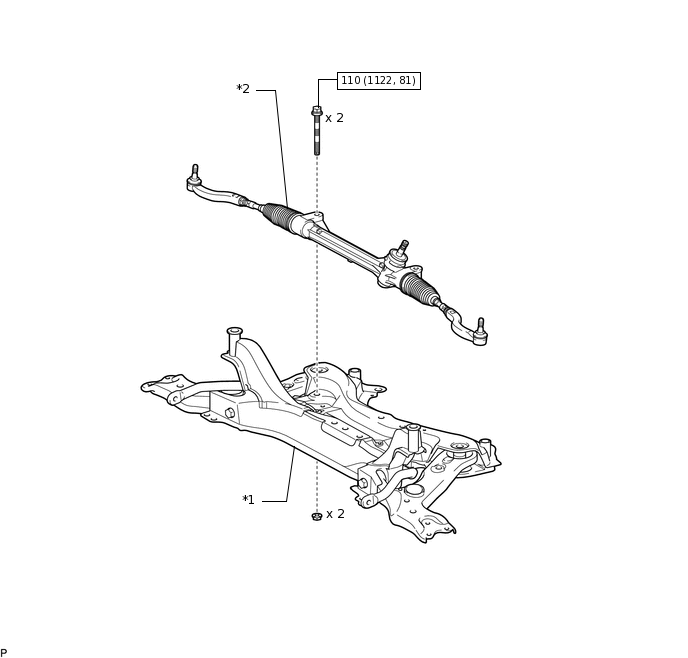

ILLUSTRATION
*1 |
FRONT SUSPENSION CROSSMEMBER SUB-ASSEMBLY |
*2 |
STEERING GEAR ASSEMBLY |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
- |
- |

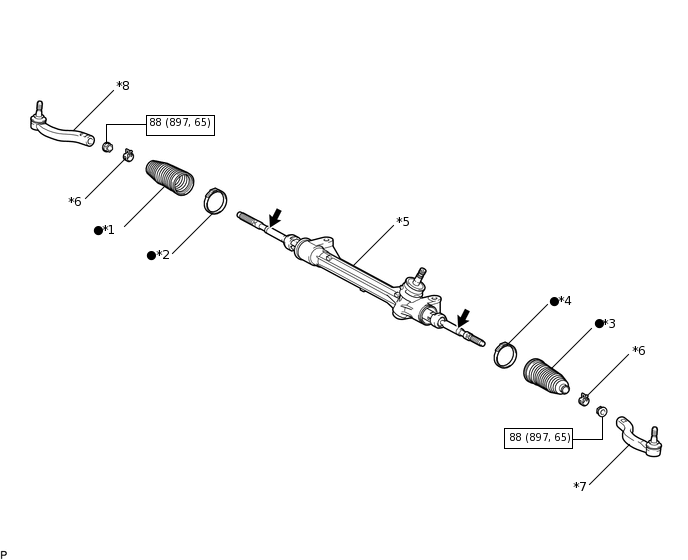

ILLUSTRATION
*1 |
NO. 1 STEERING RACK BOOT |
*2 |
NO. 1 STEERING RACK BOOT CLAMP |
*3 |
NO. 2 STEERING RACK BOOT |
*4 |
NO. 2 STEERING RACK BOOT CLAMP |
*5 |
STEERING GEAR ASSEMBLY |
*6 |
STEERING RACK BOOT CLIP |
*7 |
TIE ROD END SUB-ASSEMBLY LH |
*8 |
TIE ROD END SUB-ASSEMBLY RH |
|
Specified torque: N*m (kgf*cm, ft.*lbf) |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
- |
- |
