ELECTRONIC SHIFT LEVER SYSTEM

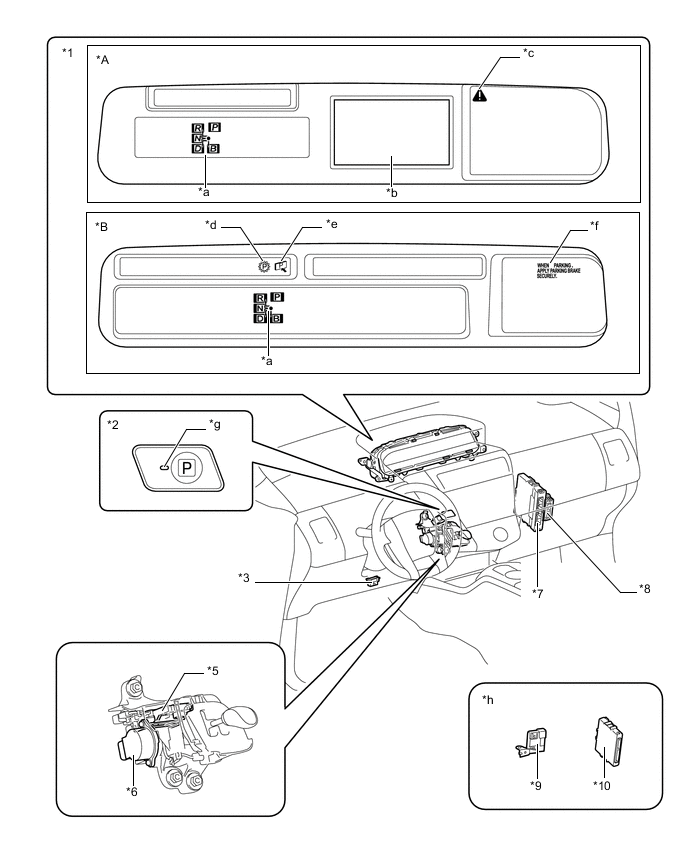

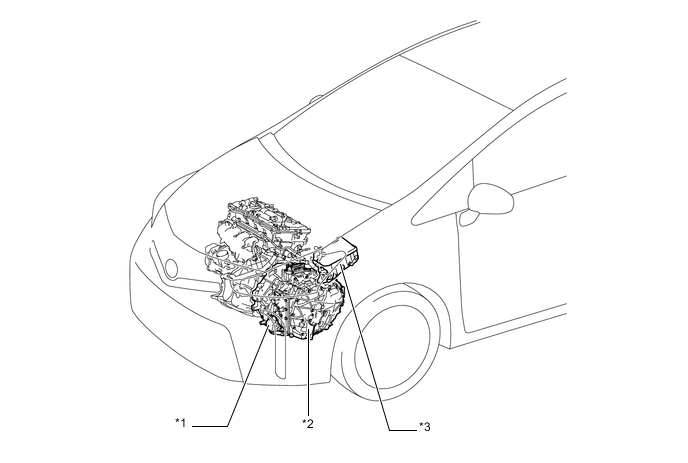

| *1 | Shift Control Actuator Assembly | *2 | Hybrid Vehicle Transaxle Assembly |
| *3 | No. 1 Engine Room Relay Block - P CON Relay (Transaxle Parking Lock Control Relay) |
- | - |
| *A | Models with Multi-information Display | *B | Models without Multi-information Display |
| *1 | Combination Meter Sub-assembly - Buzzer |
*2 | P Position Switch (Transmission Shift Main Switch) |
| *3 | DLC3 | *4 | Shift Lever (Shift Lock Control Unit Assembly) |
| *5 | Shift Lever Position Sensor (Select Sensor) | *6 | Shift Lever Position Sensor (Shift Sensor) |
| *7 | Hybrid Vehicle Control ECU | *8 | Transmission Control ECU Assembly |
| *9 | ID Code Box (Immobiliser Code ECU) | *10 | Certification ECU (Smart Key ECU Assembly) |
| *a | Shift Position Indicator | *b | Multi-information Display |
| *c | Master Warning Light | *d | P Position Control System Warning Indicator Light |
| *e | P Position Request Indicator Light | *f | P Position Control System Advisory Message |
| *g | P Position Indicator Light | *h | Refer to Service Bulletin for the installation position of the part. |

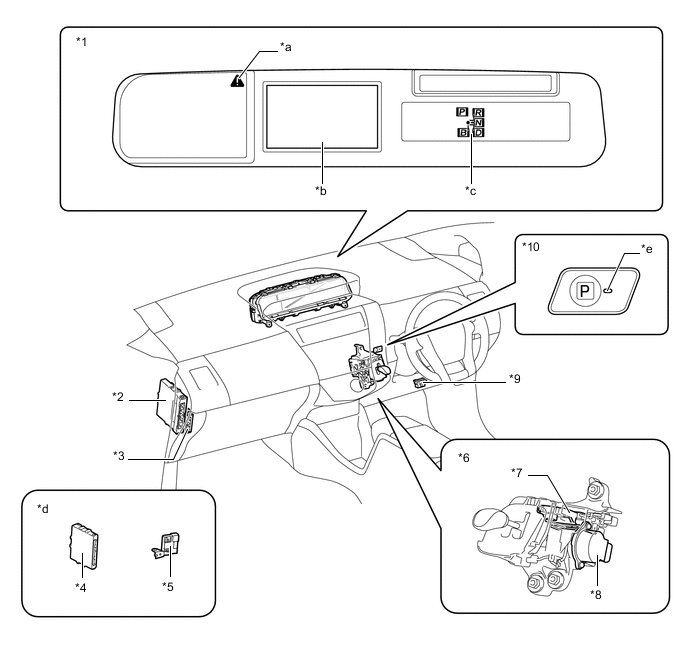

| *1 | Combination Meter Sub-assembly - Buzzer |
*2 | Hybrid Vehicle Control ECU |
| *3 | Transmission Control ECU Assembly | *4 | Certification ECU (Smart Key ECU Assembly) |
| *5 | ID Code Box (Immobiliser Code ECU) | *6 | Shift Lever (Shift Lock Control Unit Assembly) |
| *7 | Shift Lever Position Sensor (Select Sensor) | *8 | Shift Lever Position Sensor (Shift Sensor) |
| *9 | DLC3 | *10 | P Position Switch (Transmission Shift Main Switch) |
| *a | Master Warning Light | *b | Multi-information Display |
| *c | Shift Position Indicator | *d | Refer to Service Bulletin for the installation position of the part. |
| *e | P Position Indicator Light | - | - |
