BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. A yawrate sensor and deceleration sensor are built into the airbag sensor assembly.

    2. The yawrate sensor detects capacitance changes caused by the vehicle's vertical axis rotation as a rotation angle speed.

    3. The deceleration sensor detects capacitance changes between the movable electrode and fixed electrode as the vehicle's deceleration.

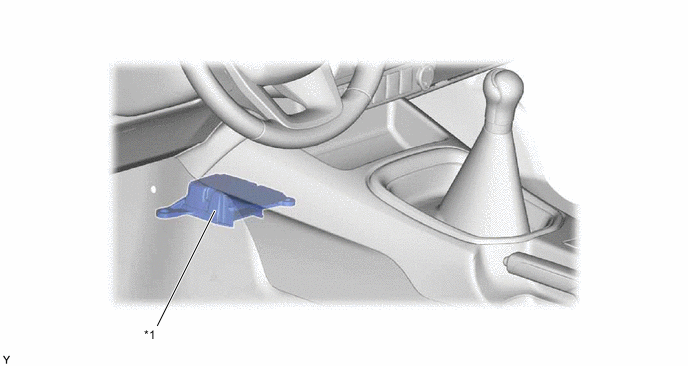

      A01KXG9C01
      *1

      Airbag Sensor Assembly


      • Yawrate Sensor

      • Deceleration Sensor

      		 - -
