LUGGAGE COMPARTMENT ROOM LIGHT INSTALLATION

PROCEDURE

1. INSTALL NO. 2 ROOM LIGHT BULB

   1.

      Install the bulb.

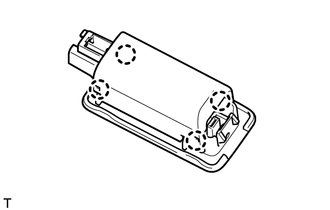

   2. Attach the 4 claws to install the cover.

2. INSTALL NO. 2 ROOM LIGHT ASSEMBLY

   1.

      Connect the connector.

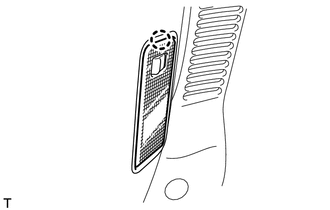

   2. Attach the claw to install the light.
