REAR SEAT INNER BELT ASSEMBLY INSPECTION

PROCEDURE

  1. INSPECT REAR SEAT INNER WITH CENTER BELT ASSEMBLY RH

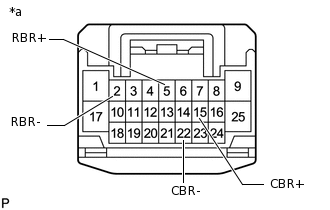

    1. w/ Seat Belt Warning System:

      1. B380242C01

        *a

        Component without harness connected

        (Rear Seat Inner With Center Belt Assembly RH)

        w/o Seat Heater System:

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        2 (RBR-) - 5 (RBR+)

        15 (CBR+) - 22 (CBR-)

        Rear seat inner with center belt assembly RH not fastened

        Below 1 Ω

        2 (RBR-) - 5( RBR+)

        15 (CBR+) - 22 (CBR-)

        Rear seat inner with center belt assembly RH fastened

        10 kΩ or higher

        If the result is not as specified, replace the rear seat inner with center belt assembly RH.

      2. B380245C01

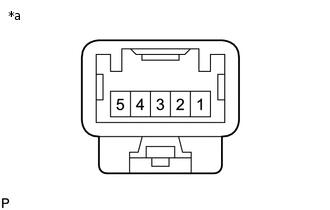

        *a

        Component without harness connected

        (Rear Seat Inner With Center Belt Assembly RH)

        w/ Seat Heater System:

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        2 - 3

        4 - 5

        Rear seat inner with center belt assembly RH not fastened

        Below 1 Ω

        2 - 3

        4 - 5

        Rear seat inner with center belt assembly RH fastened

        10 kΩ or higher

        If the result is not as specified, replace the rear seat inner with center belt assembly RH.

  2. INSPECT REAR SEAT INNER BELT ASSEMBLY LH

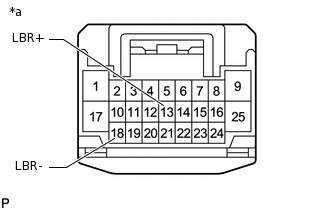

    1. w/ Seat Belt Warning System:

      1. B380242C03

        *a

        Component without harness connected

        (Rear Seat Inner Belt Assembly LH)

        w/o Seat Heater System:

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        13 (LBR+) - 18 (LBR-)

        Rear seat inner with center belt assembly LH not fastened

        Below 1 Ω

        13 (LBR+) - 18 (LBR-)

        Rear seat inner with center belt assembly LH fastened

        10 kΩ or higher

        If the result is not as specified, replace the rear seat inner belt assembly LH.

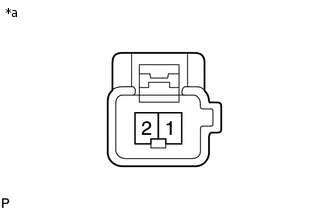

      2. B380243C01

        *a

        Component without harness connected

        (Rear Seat Inner Belt Assembly LH)

        w/ Seat Heater System:

        Measure the resistance according to the value(s) in the table below.

        Standard Resistance

        Tester Connection

        Condition

        Specified Condition

        1 - 2

        Rear seat inner with center belt assembly LH not fastened

        Below 1 Ω

        1 - 2

        Rear seat inner with center belt assembly LH fastened

        10 kΩ or higher

        If the result is not as specified, replace the rear seat inner belt assembly LH.
