PANORAMIC MOON ROOF SYSTEM
| *A | LHD Models | *B | RHD Models |

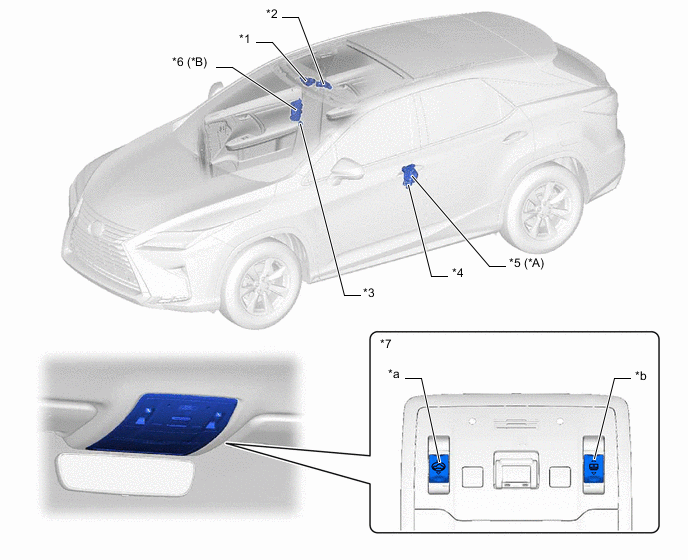

| *1 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (PANORAMIC MOON ROOF) | *2 | SLIDING ROOF DRIVE GEAR SUB-ASSEMBLY (ROOF SUNSHADE) |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (RH) | *4 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY (LH) |
| *5 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY LH | *6 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY RH |
| *7 | MAP LIGHT ASSEMBLY | - | - |
| *a | OPEN/CLOSE/VENT Switch (Panoramic Moon Roof Switch) | *b | OPEN/CLOSE Switch (Roof Sunshade Switch) |
Figure 1. LHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | COMBINATION METER ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
