RADIO ANTENNA CORD(for Instrument Panel Side) REMOVAL

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  3. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  4. REMOVE UPPER INSTRUMENT PANEL

    Click here

  5. REMOVE ANTENNA CORD SUB-ASSEMBLY (for LHD)

    1. w/ Navigation System or w/ Digital Audio Broadcasting:

      1. Detach the 6 clamps and remove the antenna cord sub-assembly.

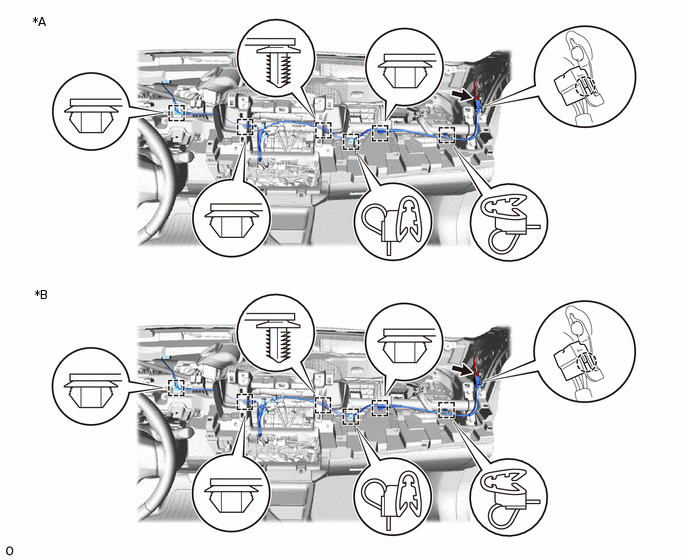

        B335978C01

        *A

        w/ Navigation System

        *B

        w/ Digital Audio Broadcasting

    2. w/o Navigation System:

      1. Detach the 4 clamps and remove the antenna cord sub-assembly.

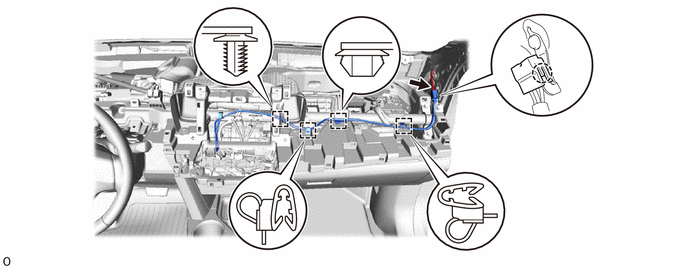

        B336672

    3. Disconnect each connector.

    4. Detach the claw.

  6. REMOVE ANTENNA CORD SUB-ASSEMBLY (for RHD)

    1. Detach the 4 clamps and remove the antenna cord sub-assembly.

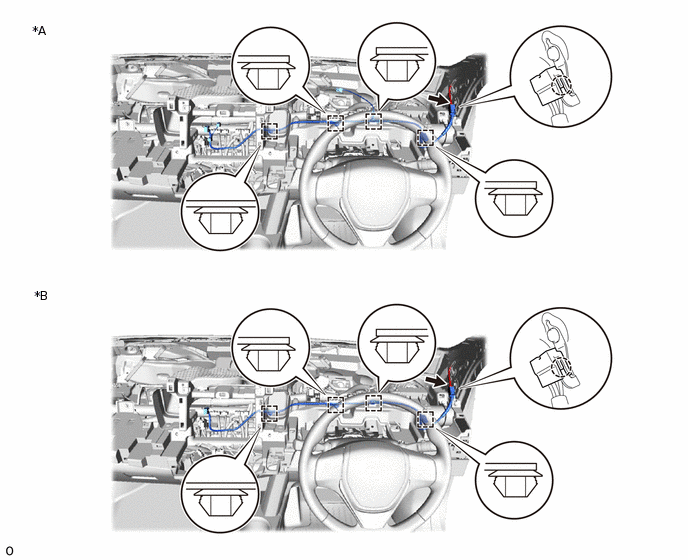

      B336674C01

      *A

      w/ Navigation System:

      *B

      w/o Navigation System:

    2. Disconnect each connector.

    3. Detach the claw.
