FRONT CRANKSHAFT OIL SEAL REMOVAL

PROCEDURE

  1. REMOVE V-RIBBED BELT

    Click here

  2. REMOVE CRANKSHAFT PULLEY

    1. A315445

      Remove the plug from the cylinder block.

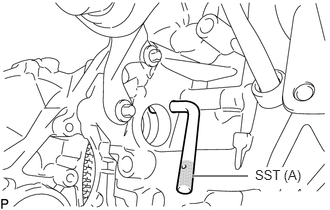

    2. A318549E01

      Set SST (A) to the plug hole of the cylinder block.

      SST (A)

      PZ4TB-04951-26

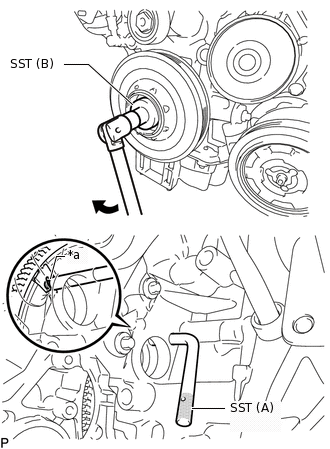

    3. A318548C01

      *a

      Groove

      Using SST (B), turn the crankshaft pulley clockwise until SST (A) fits into the groove of the flywheel with damper assembly.

      SST (B)

      PZ4TB-04933-80

    4. Using SST (A), hold the flywheel with damper assembly.

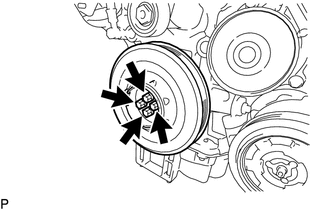

    5. A315448

      Using an E10 "TORX" socket wrench, remove the 4 bolts and crankshaft pulley.

  3. REMOVE TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

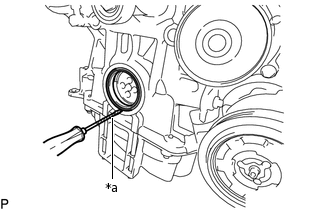

    1. A315449C01

      *a

      Protective Tape

      Using a screwdriver, pry out the timing gear case or timing chain case oil seal.

      Note:

      Do not damage the oil seal press fit hole, crankshaft or the surface of the timing gear case or timing chain case.

      Tip:

      Tape the screwdriver tip before use.
