LICENSE PLATE LIGHT ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL LICENSE PLATE LIGHT BULB

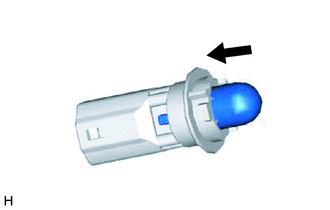

    1. E269047

      Install the license plate light bulb to the license plate light socket plug.

  2. INSTALL LICENSE PLATE LIGHT SOCKET PLUG

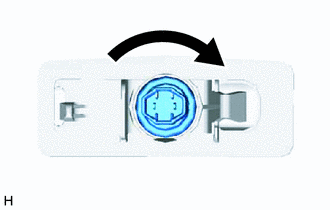

    1. E269045

      Turn the license plate light socket plug with the license plate light bulb in the direction indicated by the arrow to install them as a unit.
