LIGHTING SYSTEM PARTS LOCATION

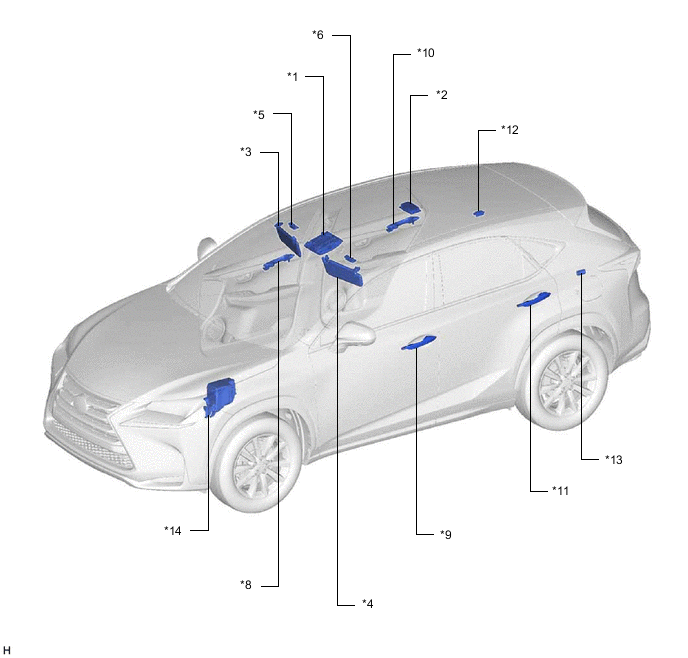

ILLUSTRATION
| *1 | MAP LIGHT ASSEMBLY | *2 | SPOT LIGHT ASSEMBLY |
| *3 | VISOR ASSEMBLY RH | *4 | VISOR ASSEMBLY LH |
| *5 | VANITY LIGHT ASSEMBLY RH | *6 | VANITY LIGHT ASSEMBLY LH |
| *8 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY RH | *9 | FRONT DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *10 | REAR DOOR OUTSIDE HANDLE ASSEMBLY RH | *11 | REAR DOOR OUTSIDE HANDLE ASSEMBLY LH |
| *12 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY RH | *13 | NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY LH |
| *14 | ENGINE ROOM RELAY BLOCK - AM2 FUSE - ECU-B NO.5 FUSE - DOME FUSE |
- | - |

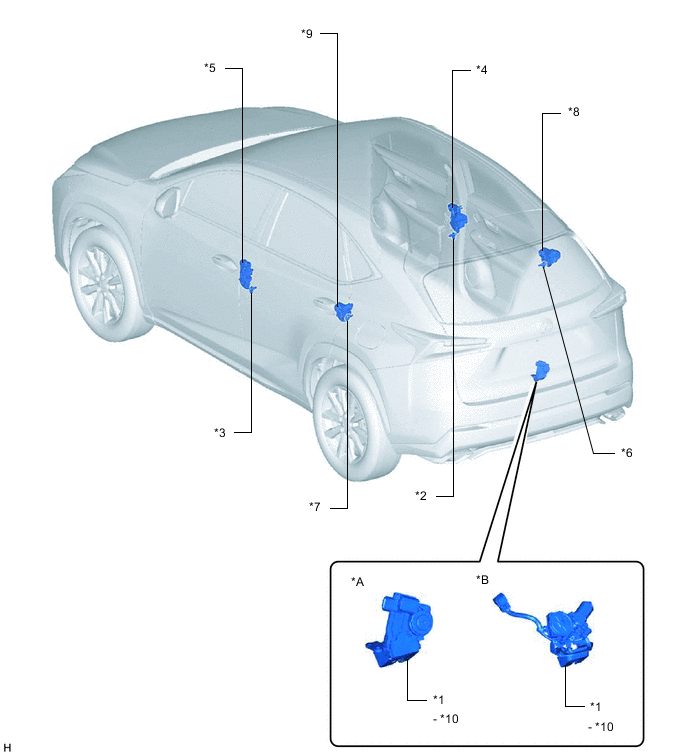

ILLUSTRATION
| *A | w/o Power Back Door System | *B | w/ Power Back Door System |
| *1 | BACK DOOR LOCK ASSEMBLY | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *4 | FRONT DOOR LOCK ASSEMBLY RH |
| *5 | FRONT DOOR LOCK ASSEMBLY LH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *7 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *8 | REAR DOOR LOCK ASSEMBLY RH |
| *9 | REAR DOOR LOCK ASSEMBLY LH | *10 | BACK DOOR COURTESY LIGHT SWITCH |

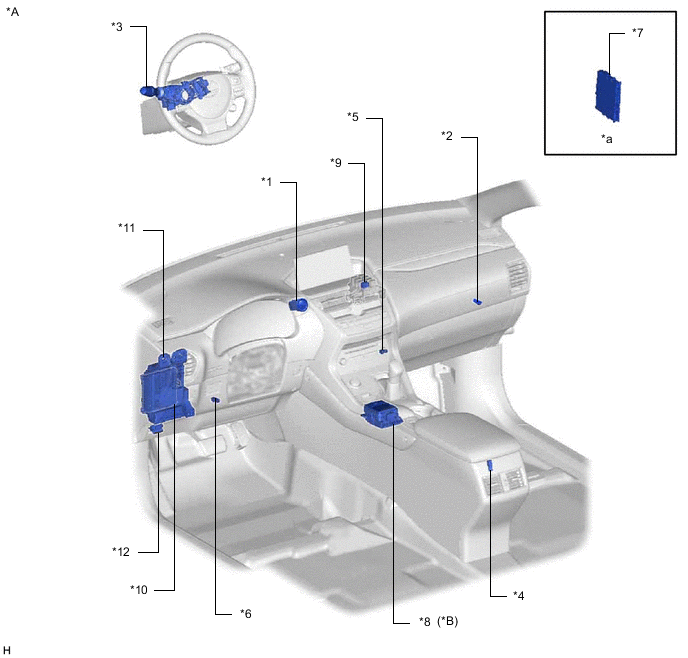

ILLUSTRATION
| *A | for LHD | *B | w/ Navigation System |
| *1 | ENGINE SWITCH | *2 | GLOVE BOX LIGHT ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY |
| *5 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH | *6 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | REMOTE OPERATION CONTROLLER ASSEMBLY |
| *9 | NO. 3 RELAY BLOCK - DOME CUT RELAY |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - ACC RELAY - IG1 NO.2 RELAY - ACC FUSE - ECU-IG NO.2 FUSE - PANEL FUSE |
*12 | DLC3 |
| *a | Refer to the Service Bulletin for the installation position. | - | - |

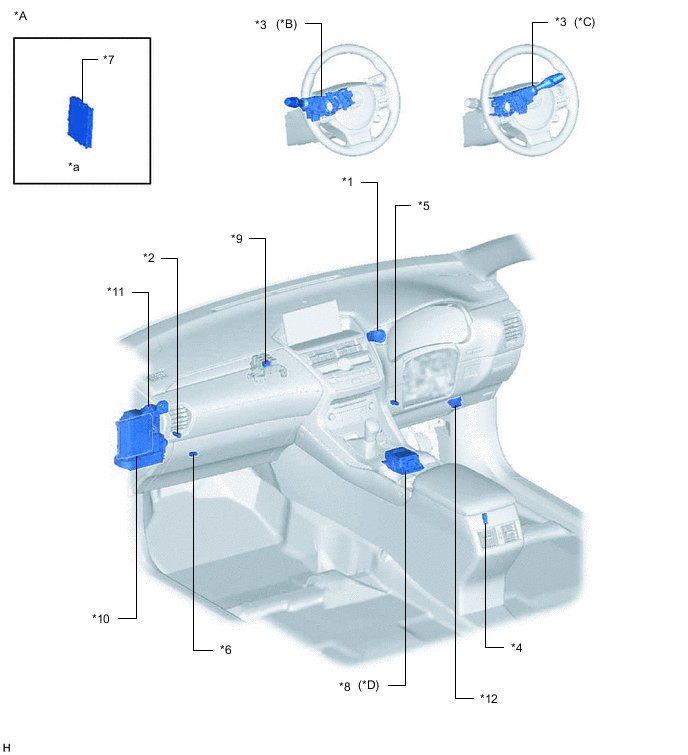

ILLUSTRATION
| *A | for RHD | *B | for LH Side |
| *C | for RH Side | *D | w/ Navigation System |
| *1 | ENGINE SWITCH | *2 | GLOVE BOX LIGHT ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | CONSOLE BOX ILLUMINATION LIGHT ASSEMBLY |
| *5 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY RH | *6 | NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY LH |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | REMOTE OPERATION CONTROLLER ASSEMBLY |
| *9 | NO. 3 RELAY BLOCK - DOME CUT RELAY |
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - TAIL RELAY - ACC RELAY - IG1 NO.2 RELAY - ACC FUSE - ECU-IG NO.2 FUSE - PANEL FUSE |
*12 | DLC3 |
| *a | Refer to the Service Bulletin for the installation position. | - | - |
