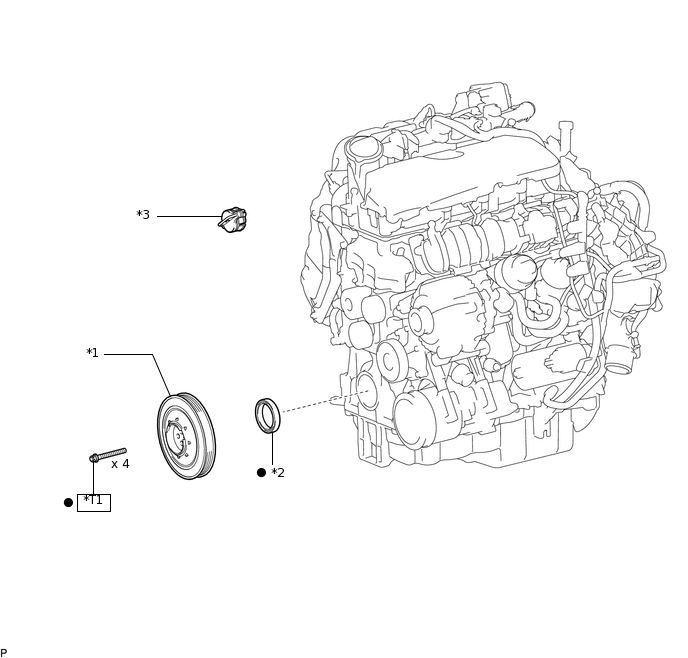

FRONT CRANKSHAFT OIL SEAL COMPONENTS

*1	CRANKSHAFT PULLEY	*2	TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL
*3	PLUG	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	●	Non-reusable part
*T1	1st: 40 (408, 30) 2nd: Turn 120°	-	-

*1

CRANKSHAFT PULLEY

*2

TIMING GEAR CASE OR TIMING CHAIN CASE OIL SEAL

*3

PLUG

-

N*m (kgf*cm, ft.*lbf): Specified torque

●

Non-reusable part

*T1

1st: 40 (408, 30)

2nd: Turn 120°

-
