WIPER AND WASHER SYSTEM

A004GQZE02

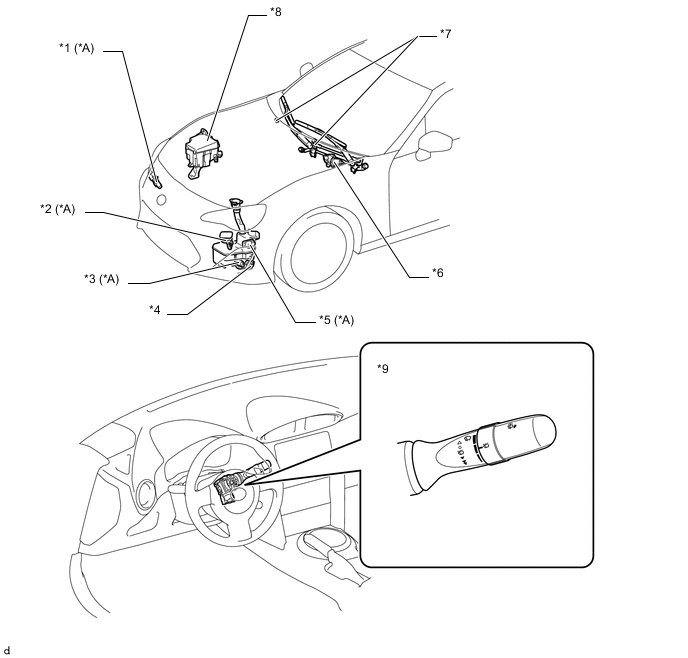

Text in Illustration
*A Models with Headlight Cleaner System - -
*1 Headlight Washer Actuator Sub-assembly RH *2 Headlight Washer Actuator Sub-assembly LH
*3 Headlight Cleaner Motor and Pump Assembly *4 Windshield Washer Motor and Pump Assembly
*5 Headlight Cleaner Control Relay *6

  • Front Wiper Motor and Link Assembly


    • Windshield Wiper Motor Assembly
*7 Washer Nozzle Sub-assembly *8

  • Engine Room Relay Block


    • Headlight Relay
*9

  • Windshield Wiper Switch Assembly


    • Windshield Wiper Switch

    • Windshield Wiper Relay

    • Windshield Washer Switch

    • Time Interval Adjuster

 - -
