WIRELESS CHARGING SYSTEM
Figure 1. LHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
| *a | Refer to Service Bulletin for the installation of the part. | *b | Charging Area |
| *c | Charging Indicator | *d | Mobile Wireless Charger Switch |

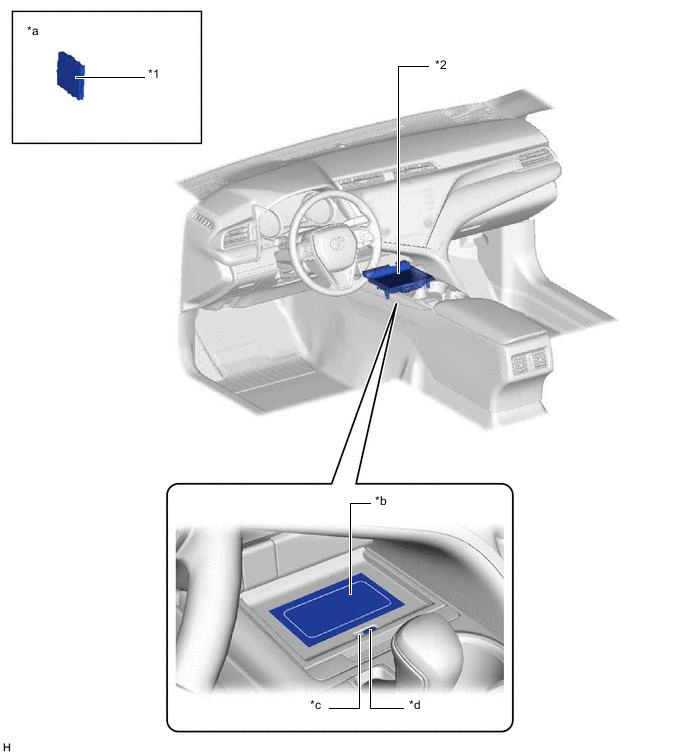

Figure 2. RHD Models
| *1 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *2 | MOBILE WIRELESS CHARGER CRADLE ASSEMBLY |
| *a | Refer to Service Bulletin for the installation of the part. | *b | Charging Area |
| *c | Charging Indicator | *d | Mobile Wireless Charger Switch |
