REAR BRAKE FLEXIBLE HOSE COMPONENTS

*A	w/o Full Size Spare Tire	*B	w/ Full Size Spare Tire
*1	BATTERY SERVICE COVER	*2	DECK BOARD ASSEMBLY
*3	NEGATIVE AUXILIARY BATTERY TERMINAL	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

*A

w/o Full Size Spare Tire

*B

w/ Full Size Spare Tire

*1

BATTERY SERVICE COVER

*2

DECK BOARD ASSEMBLY

*3

NEGATIVE AUXILIARY BATTERY TERMINAL

-

N*m (kgf*cm, ft.*lbf): Specified torque

-

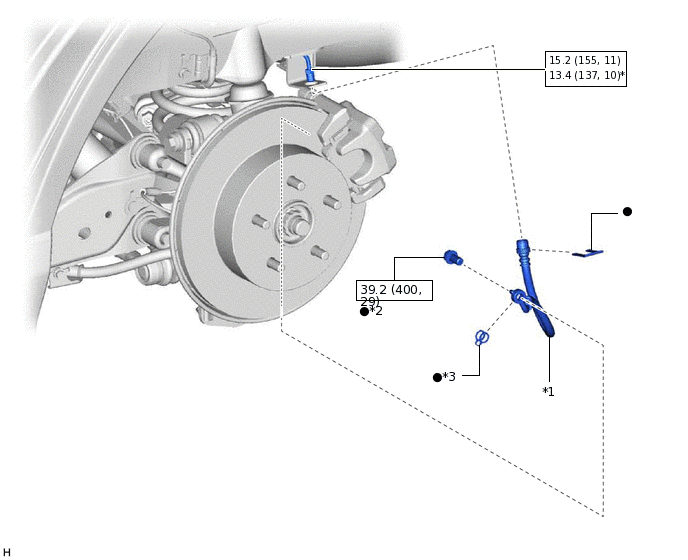

*1	REAR FLEXIBLE HOSE LH	*2	UNION BOLT
*3	GASKET	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	*	For use with union nut wrench
●	Non-reusable part	-	-
