DYNAMIC RADAR CRUISE CONTROL SYSTEM


  1. OPERATION


    1. The combination meter assembly has a master warning light, radar cruise control indicator light (constant speed control mode), radar cruise control indicator light (vehicle-to-vehicle distance control mode), cruise control SET indicator light, multi buzzer, and multi-information display to provide warnings and messages regarding the dynamic radar cruise control system.

    2. The multi-information display displays the set vehicle speed, vehicle ahead mark, and warning message.

    3. Examples are shown below for the illumination or display of each indicator light, warning light or multi-information display.

      Constant Speed Control Mode
      Condition Multi-information Display Radar Cruise Control Indicator Light Cruise Control SET Indicator Light Master Warning Light Buzzer

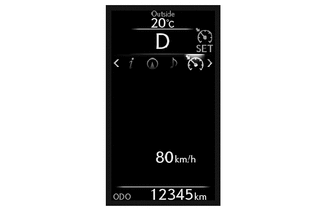

      Being Controlled A01GG95 Illuminates Illuminates - -

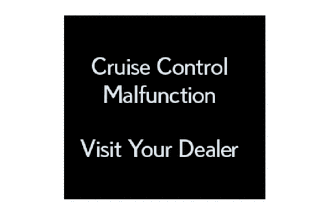

      System Check A01GGED - - Illuminates Buzzer in the combination meter assembly sounds once
      Vehicle-to-vehicle Distance Control Mode
      Condition Multi-information Display Radar Cruise Control Indicator Light Cruise Control Set Indicator Light Master Warning Light Multi Buzzer

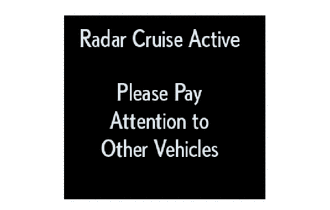

      Precaution Display (Displayed for 6 sec. after ON-OFF button has been turned on.) A01GGOQ Illuminates - - -

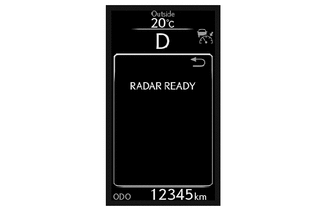

      Set Standby A01GGBW Illuminates - - -

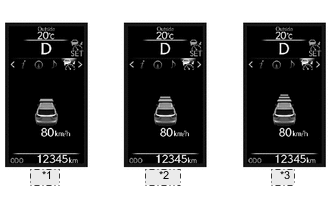

      Under Constant Speed Control (No Vehicle Ahead) A01GGZGE01
      *1 Short
      *2 Middle
      *3 Long
      		Illuminates Illuminates - -

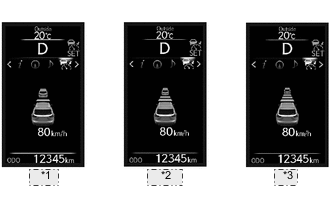

      Under Follow-up Control (Vehicle Ahead) A01GGJYE01
      *1 Short
      *2 Middle
      *3 Long
      		Illuminates Illuminates - -

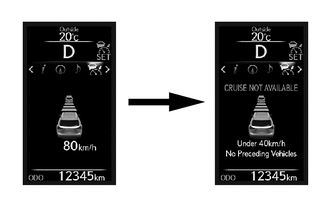

      Under Follow-up Control (The vehicle ahead moves away when the vehicle is being driven at approx. 40 km/h [25 mph] or less.)*1

      		A01GH1K Illuminates Illuminates - -
      The vehicle-to-vehicle distance mark and vehicle ahead mark blink at intervals of 250 msec, then the cancel display appears.

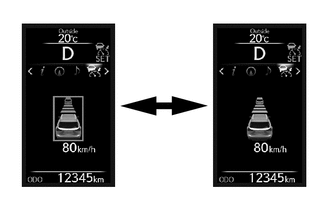

      Deceleration Control (Vehicle Ahead) A01GH34 Illuminates Illuminates - Skid control buzzer sounds continuously
      The display frame, vehicle-to-vehicle distance mark and vehicle ahead mark blink at intervals of 250 msec and the skid control buzzer sounds.

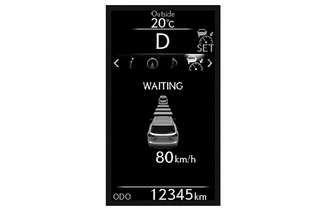

      Stop Retention Control*1

      		A01GGL8 Illuminates Illuminates - -

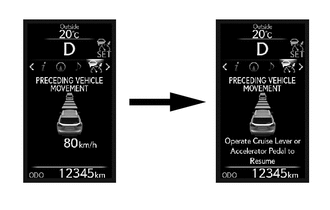

      Start Control*1

      		A01GGZ0 Illuminates Illuminates - -

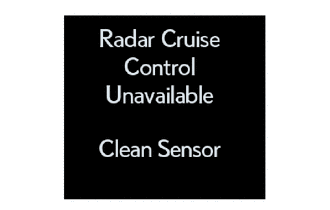

      Millimeter wave radar sensor assembly is dirty. A01GH0K - - Illuminates Buzzer in the combination meter assembly sounds once

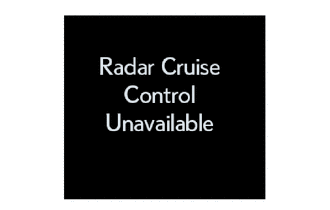

      Poor Weather Conditions A01GH4W - - Illuminates Buzzer in the combination meter assembly sounds once
      System Check A01GGZA - - Illuminates Buzzer in the combination meter assembly sounds once

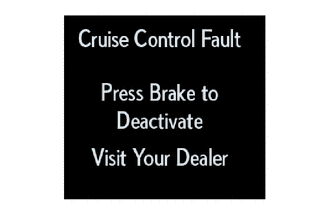

      System Check During Stop Retention Control*1

      		A01GGUJ - - Illuminates Skid control buzzer sounds continuously
      The skid control buzzer sounds until the brake pedal is depressed.

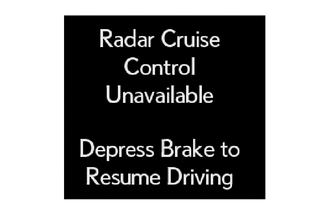

      When any problem occurs during stop retention control, or any of the following conditions is met:


      • Vehicle is stopped on a steep slope.

      • Vehicle is detected to be stopped.

      • Shift position is changed from D to N, or D to other position.

      • Shift position is D and the driver shifts into the D1, D2 or D3 range with the shift paddle.*2

      • Preceding vehicle is no longer detected.

      		 A01GH1X - - - Skid control buzzer sounds continuously
      The skid control buzzer sounds until the brake pedal is depressed.

      • *1: Models with full-speed range following function

      • *2: Models with shift paddle
