OUTER MIRROR SWITCH REMOVAL

PROCEDURE

  1. REMOVE OUTER MIRROR SWITCH ASSEMBLY

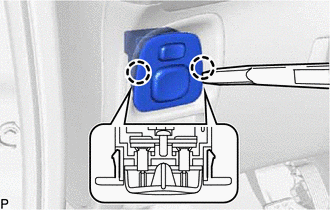

    1. B370091

      Using a moulding remover, disengage the 2 claws and remove the outer mirror switch assembly.

  2. REMOVE NO. 2 OUTER MIRROR SWITCH ASSEMBLY

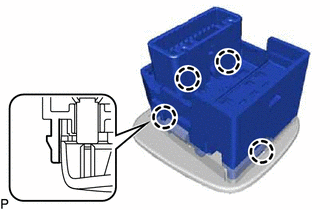

    1. B370093

      Disengage the 4 claws and remove the No. 2 outer mirror switch.
