BACK DOOR OPENER SWITCH REMOVAL

PROCEDURE

1. REMOVE BACK DOOR CENTER GARNISH

   Click here

2. REMOVE BACK DOOR SIDE GARNISH LH

   Click here

3. REMOVE BACK DOOR SIDE GARNISH RH

   Tip:

   Use the same procedure described for the LH side.

4. REMOVE BACK DOOR TRIM BOARD ASSEMBLY

   Click here

5. REMOVE POWER BACK DOOR SENSOR ASSEMBLY LH (w/ Power Back Door)

   Click here

6. REMOVE POWER BACK DOOR SENSOR ASSEMBLY RH (w/ Power Back Door)

   Tip:

   Use the same procedure described for the LH side.

7. REMOVE REAR LIGHT ASSEMBLY LH

   Click here

8. REMOVE REAR LIGHT ASSEMBLY RH

   Tip:

   Use the same procedure described for the LH side.

9. REMOVE BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY

   Click here

10. REMOVE BACK DOOR OPENER SWITCH ASSEMBLY

    1.

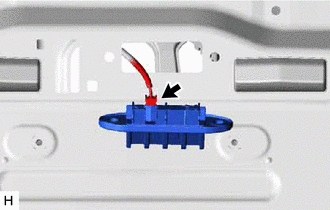

       Disconnect the connector.

    2. Remove the back door opener switch assembly.
