DRIVE BELT REMOVAL

PROCEDURE

  1. REMOVE NO. 1 ENGINE UNDER COVER

    Click hereClick here

  2. REMOVE REAR ENGINE UNDER COVER RH

    Click hereClick hereClick here

  3. REMOVE V-RIBBED BELT

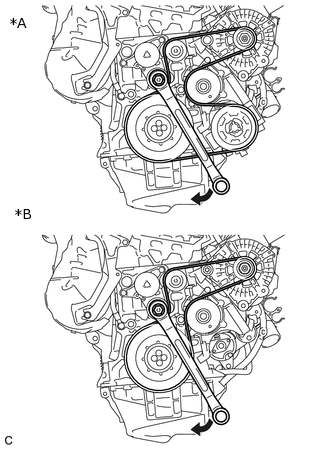

    1. A354298C01

      *A

      w/ Air Conditioning System

      *B

      w/o Air Conditioning System

      Rotate the pulley of the V-ribbed belt tensioner assembly clockwise to loosen the V-ribbed belt and reduce the tension. Then remove the V-ribbed belt.
