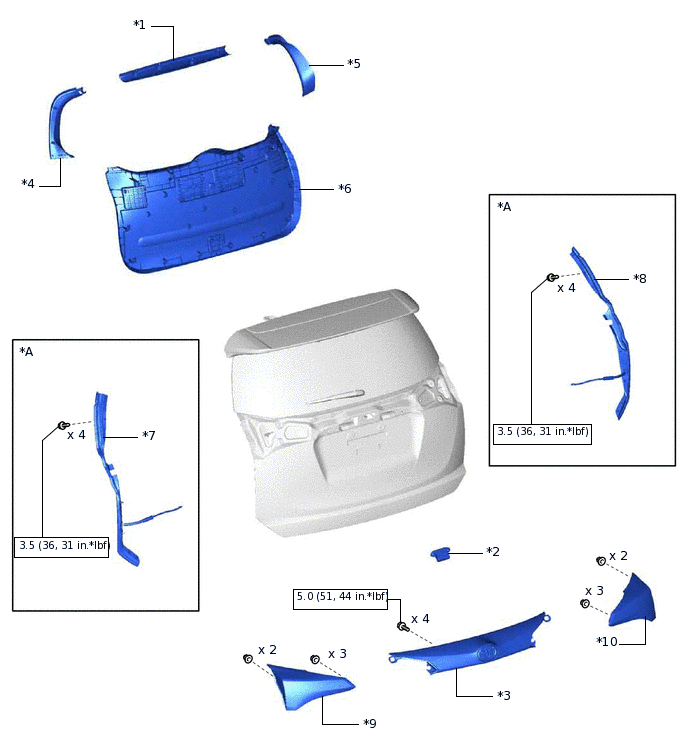

BACK DOOR OPENER SWITCH COMPONENTS
ILLUSTRATION
*A |
w/ Power Back Door |
- |
- |
*1 |
BACK DOOR CENTER GARNISH |
*2 |
BACK DOOR OPENER SWITCH ASSEMBLY |
*3 |
BACK DOOR OUTSIDE GARNISH SUB-ASSEMBLY |
*4 |
BACK DOOR SIDE GARNISH LH |
*5 |
BACK DOOR SIDE GARNISH RH |
*6 |
BACK DOOR TRIM BOARD ASSEMBLY |
*7 |
POWER BACK DOOR SENSOR ASSEMBLY LH |
*8 |
POWER BACK DOOR SENSOR ASSEMBLY RH |
*9 |
REAR LIGHT ASSEMBLY LH |
*10 |
REAR LIGHT ASSEMBLY RH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |
