REAR AXLE CARRIER INSTALLATION

PROCEDURE

  1. INSTALL REAR AXLE CARRIER SUB-ASSEMBLY LH

    1. Temporarily install the rear axle carrier assembly LH to the rear upper control arm with the bolt and nut.

  2. TEMPORARILY INSTALL REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly LH.

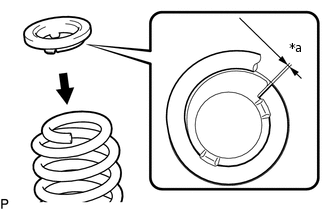

    2. C276119C02

      *a

      10 mm or less

      Install the rear upper coil spring insulator to the rear coil spring.

      Note:

      Install the rear upper coil insulator so that the distance between the stopper and upper end of the rear coil spring is 10 mm (0.394 in.) or less.

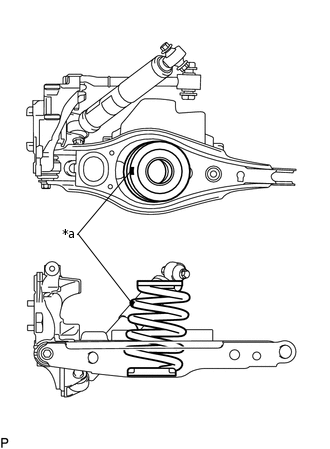

    3. C266194C01

      *a

      Identification Mark

      Install the rear coil spring to the rear No. 2 suspension arm assembly LH.

      Note:

      Make sure that the identification mark is positioned towards the outer sides of the vehicle.

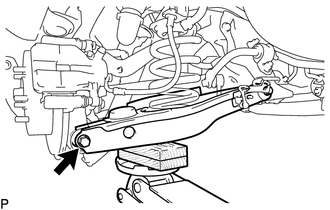

    4. C298565

      Using a jack and wooden block, raise the vehicle gradually to install the rear No. 2 suspension arm assembly LH to the rear axle carrier. Then temporarily install the bolt.

      Note:

      • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.

      • Do not jack up the rear No. 2 suspension arm assembly too high as the vehicle may fall.

      • Make sure to perform this operation with the vehicle kept as low as possible.

  3. CONNECT REAR TRAILING ARM ASSEMBLY

    1. Connect the rear trailing arm assembly to the axle carrier with the 2 bolts.

      200 N*m

      2039 kgf*cm

      148 ft.*lbf

  4. CONNECT REAR NO. 1 SUSPENSION ARM ASSEMBLY LH

    1. Connect the rear No. 1 suspension arm assembly LH to the rear axle carrier with a new nut.

      100 N*m

      1020 kgf*cm

      74 ft.*lbf

  5. CONNECT REAR SHOCK ABSORBER BRACKET LH

    1. Connect the rear shock absorber bracket LH to the rear axle carrier with the 2 bolts.

      80 N*m

      816 kgf*cm

      59 ft.*lbf

  6. INSTALL REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH

    Click here

  7. STABILIZE SUSPENSION

    Click here

  8. TIGHTEN REAR UPPER CONTROL ARM ASSEMBLY LH

    1. Tighten the bolt.

      90 N*m

      918 kgf*cm

      66 ft.*lbf

      Note:

      Since a stopper nut is used, tighten the bolt.

  9. TIGHTEN REAR NO. 2 SUSPENSION ARM ASSEMBLY LH

    1. Tighten the 2 bolts of the suspension arm assembly LH.

      90 N*m

      918 kgf*cm

      66 ft.*lbf

  10. INSTALL REAR SUSPENSION ARM COVER LH (w/ Cover)

    Click here

  11. CONNECT PARKING BRAKE ASSEMBLY

    1. Connect the parking brake assembly to the rear axle carrier with the nut.

      140 N*m

      1428 kgf*cm

      103 ft.*lbf

  12. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY

    1. Connect the No. 3 parking brake cable assembly to the rear trailing arm assembly with the bolt.

      6.0 N*m

      61 kgf*cm

      53 in.*lbf

  13. INSTALL REAR STABILIZER LINK ASSEMBLY LH

    Click here

  14. INSTALL REAR AXLE HUB AND BEARING ASSEMBLY LH

    Click here

  15. INSTALL REAR WHEEL

    Click here

  16. INSPECT AND ADJUST PARKING BRAKE

    Click here

  17. INSPECT AND ADJUST REAR WHEEL ALIGNMENT

    Click here

  18. CHECK FOR SPEED SENSOR SIGNAL

    Click here
