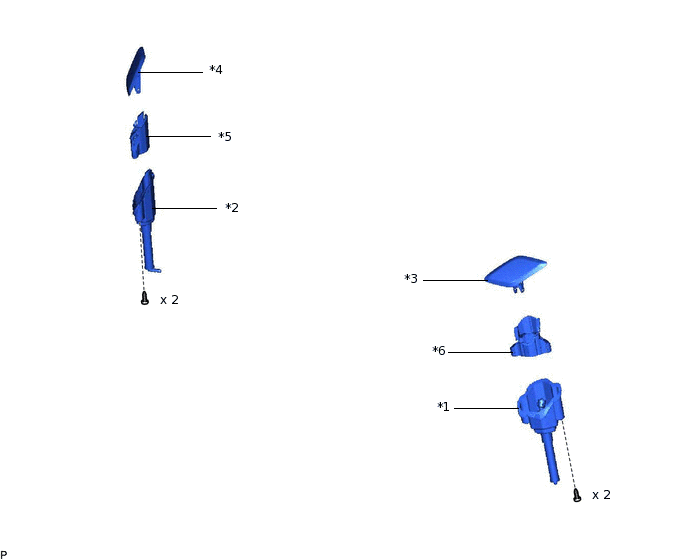

HEADLIGHT CLEANER ACTUATOR COMPONENTS

ILLUSTRATION

E265007C01

*1

HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH

*2

HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH

*3

HEADLIGHT WASHER COVER LH

*4

HEADLIGHT WASHER COVER RH

*5

NO. 1 HEADLIGHT CLEANER CLAMP

*6

NO. 2 HEADLIGHT CLEANER CLAMP
