DRIVE BELT ON-VEHICLE INSPECTION

PROCEDURE

  1. INSPECT V-RIBBED BELT

    1. B000543

      Check the belt for wear, cracks or other signs of damage.

      If any of the following defects is found, replace the V-ribbed belt.

      • The V-ribbed belt is cracked.

      • The V-ribbed belt is worn out to the extent that the cords are exposed.

      • The V-ribbed belt has chunks missing from the ribs.

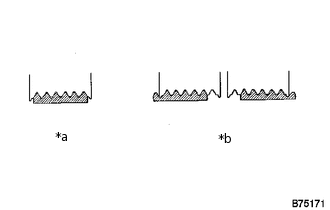

    2. B075171C05

      *a

      Correct

      *b

      Incorrect

      Check that the belt fits properly in the ribbed grooves.

      Tip:

      Check with your hand to confirm that the V-ribbed belt has not slipped out of the grooves on the bottom of the pulley. If it has slipped out, replace the V-ribbed belt. Install a new V-ribbed belt correctly.

  2. INSPECT V-RIBBED BELT TENSIONER ASSEMBLY

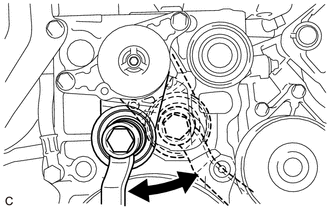

    1. A354297

      Turn the V-ribbed belt tensioner assembly clockwise and counterclockwise and check that it turns smoothly and does not catch.

      If a malfunction exists, replace the V-ribbed belt tensioner assembly.
