STEERING COLUMN ASSEMBLY REASSEMBLY

CAUTION / NOTICE / HINT

Note:

  • When using a vise, place aluminum plates between the part and vise.

  • When using a vise, do not overtighten it.

PROCEDURE

  1. INSTALL POWER STEERING MOTOR ASSEMBLY

    1. Apply grease to the spline part of the electric power steering column sub-assembly.

    2. Install the new O-ring to the power steering motor assembly.

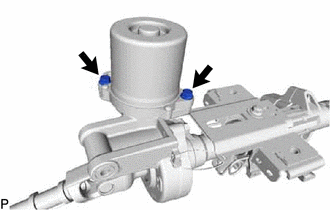

    3. C275628

      Install the power steering motor assembly with the 2 bolts.

      20 N*m

      204 kgf*cm

      15 ft.*lbf

    4. Place new heat resistant tape.

      Note:

      As heat from the power steering motor assembly may generate smoke, use heat resistant tape (resistant to 100°C (212°F) or higher).

  2. INSTALL POWER STEERING ECU ASSEMBLY

    Click here

  3. INSTALL STEERING LOCK ACTUATOR ASSEMBLY

    Tip:

    When replacing the steering lock actuator assembly, refer to the Service Bulletin.

    1. Temporarily install the steering lock actuator assembly with a new tapered-head bolt.

      Note:

      Be sure to use a new tapered-head bolt.

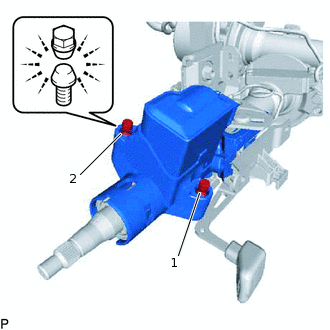

    2. C275672C01

      Tighten the 2 tapered-head bolts until the bolt head breaks off.

      Tip:

      Tighten the nuts in the order shown in the illustration.
