REAR BRAKE COMPONENTS
ILLUSTRATION
*A |
w/o Full Size Spare Tire |
*B |
w/ Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

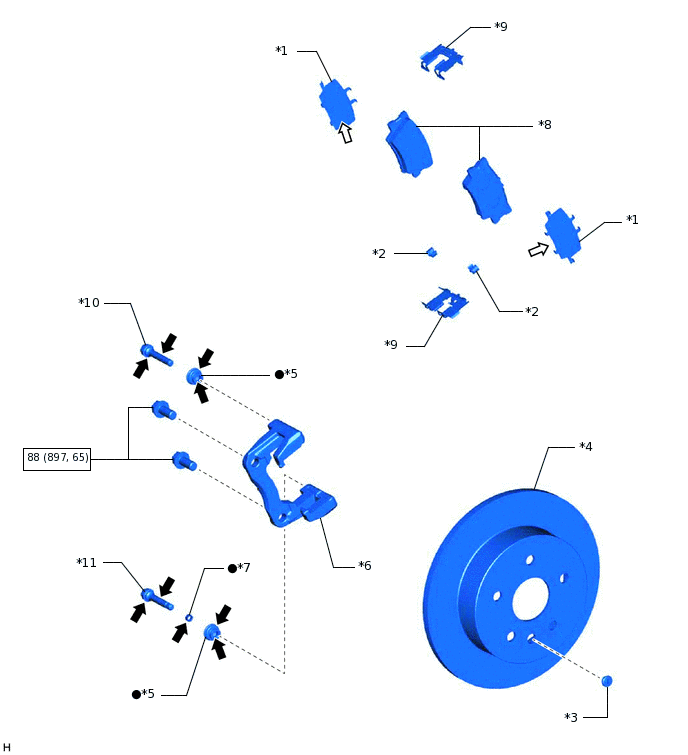

ILLUSTRATION
*1 |
NO. 1 ANTI-SQUEAL SHIM |
*2 |
PAD WEAR INDICATOR PLATE |
*3 |
PARKING BRAKE SHOE ADJUSTING HOLE PLUG |
*4 |
REAR DISC |
*5 |
REAR DISC BRAKE BUSH DUST BOOT |
*6 |
REAR DISC BRAKE CYLINDER MOUNTING LH |
*7 |
REAR DISC BRAKE CYLINDER SLIDE BUSH |
*8 |
REAR DISC BRAKE PAD |
*9 |
REAR DISC BRAKE PAD SUPPORT PLATE |
*10 |
REAR NO. 1 DISC BRAKE CYLINDER SLIDE PIN |
*11 |
REAR DISC BRAKE REAR CYLINDER SLIDE PIN |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Lithium soap base glycol grease |
 |
Disc brake grease |

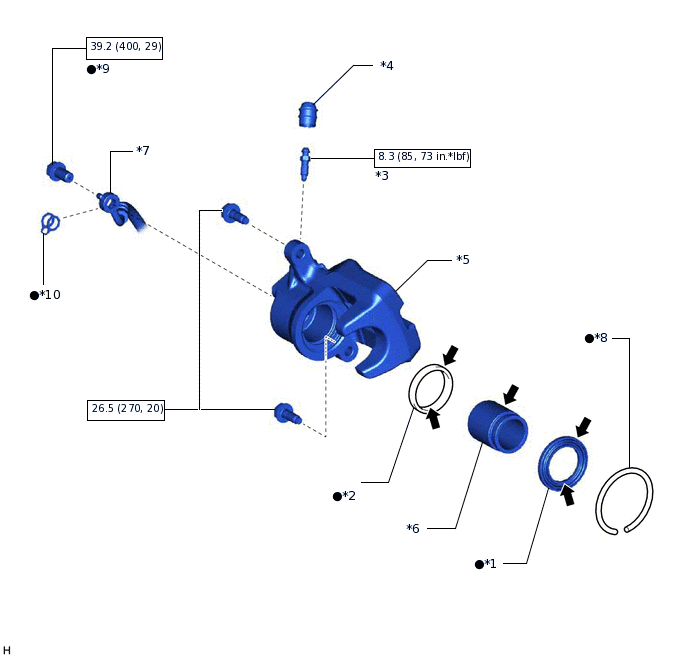

ILLUSTRATION
*1 |
CYLINDER BOOT |
*2 |
PISTON SEAL |
*3 |
REAR DISC BRAKE BLEEDER PLUG |
*4 |
REAR DISC BRAKE BLEEDER PLUG CAP |
*5 |
REAR DISC BRAKE CYLINDER ASSEMBLY LH |
*6 |
REAR DISC BRAKE PISTON |
*7 |
REAR FLEXIBLE HOSE LH |
*8 |
SET RING |
*9 |
UNION BOLT |
*10 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Lithium soap base glycol grease |
- |
- |
