FRONT POWER SEAT CONTROL SYSTEM(w/ Memory) Front Power Seat does not Operate with Front Power Seat Switch

DESCRIPTION

Tech Tips

The position control ECU and switch assembly is a collective term for the position control ECU and switch assembly (driver seat) and the position control ECU and switch assembly (front passenger seat).

Signals are input into the position control ECU and switch assembly. The built-in ECU manages the signals received from the power seat switch and operates each motor. If the position control ECU and switch assembly receives more than 2 motor operation signals for the same motor, the motor will be stopped. Manual operation resumes when the position control ECU and switch assembly receives only 1 signal.

WIRING DIAGRAM


  1. Driver Seat

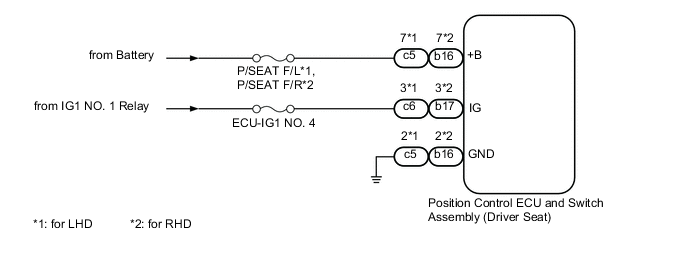

    A01VU4RE01

  2. Front Passenger Seat

    A01VU4RE02

CAUTION / NOTICE / HINT

Note

Inspect the fuses for circuits related to this system before performing the following procedure.

PROCEDURE


  1. CHECK FRONT POWER SEAT OPERATION


    1. Check that each function of the power seat operates normally by using the position control ECU and switch assembly.

      Click here

      Result
      Result Proceed to
      All power seat functions do not operate (for Driver Seat) A
      All power seat functions do not operate (for Front Passenger Seat) B
      One or more power seat functions do not operate C

    B

    CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY (FRONT PASSENGER SEAT) - POWER SUPPLY) Click here

    C

    GO TO OTHER DIAGNOSIS PROCEDURE (One or more Power Seat Motors do not Operate) Click here

    A

  2. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY (DRIVER SEAT) - POWER SUPPLY)


    1. Disconnect the c5*1 and c6*1 or b16*2 and b17*2 position control ECU and switch assembly (driver seat) connectors.


      • *1: for LHD

      • *2: for RHD

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for LHD
      Tester Connection Condition Specified Condition
      c5-7 (+B) - Body ground Always 11 to 14 V
      c6-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      c6-3 (IG) - Body ground Engine switch off Below 1 V
      for RHD
      Tester Connection Condition Specified Condition
      b16-7 (+B) - Body ground Always 11 to 14 V
      b17-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      b17-3 (IG) - Body ground Engine switch off Below 1 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY (DRIVER SEAT) - BODY GROUND)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LHD
      Tester Connection Condition Specified Condition
      c5-2 (GND) - Body ground Always Below 1 Ω
      for RHD
      Tester Connection Condition Specified Condition
      b16-2 (GND) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE POSITION CONTROL ECU AND SWITCH ASSEMBLY (DRIVER SEAT) Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

  4. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY (FRONT PASSENGER SEAT) - POWER SUPPLY)


    1. Disconnect the b16*1 and b17*1 or c5*2 and c6*2 position control ECU and switch assembly (front passenger seat) connectors.


      • *1: for LHD

      • *2: for RHD

    2. Measure the voltage according to the value(s) in the table below.

      Standard Voltage
      for LHD
      Tester Connection Condition Specified Condition
      b16-7 (+B) - Body ground Always 11 to 14 V
      b17-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      b17-3 (IG) - Body ground Engine switch off Below 1 V
      for RHD
      Tester Connection Condition Specified Condition
      c5-7 (+B) - Body ground Always 11 to 14 V
      c6-3 (IG) - Body ground Engine switch on (IG) 11 to 14 V
      c6-3 (IG) - Body ground Engine switch off Below 1 V
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  5. CHECK HARNESS AND CONNECTOR (POSITION CONTROL ECU AND SWITCH ASSEMBLY (FRONT PASSENGER SEAT) - BODY GROUND)


    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      for LHD
      Tester Connection Condition Specified Condition
      b16-2 (GND) - Body ground Always Below 1 Ω
      for RHD
      Tester Connection Condition Specified Condition
      c5-2 (GND) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE POSITION CONTROL ECU AND SWITCH ASSEMBLY (FRONT PASSENGER SEAT) Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
