BLIND SPOT MONITOR SYSTEM PARTS LOCATION

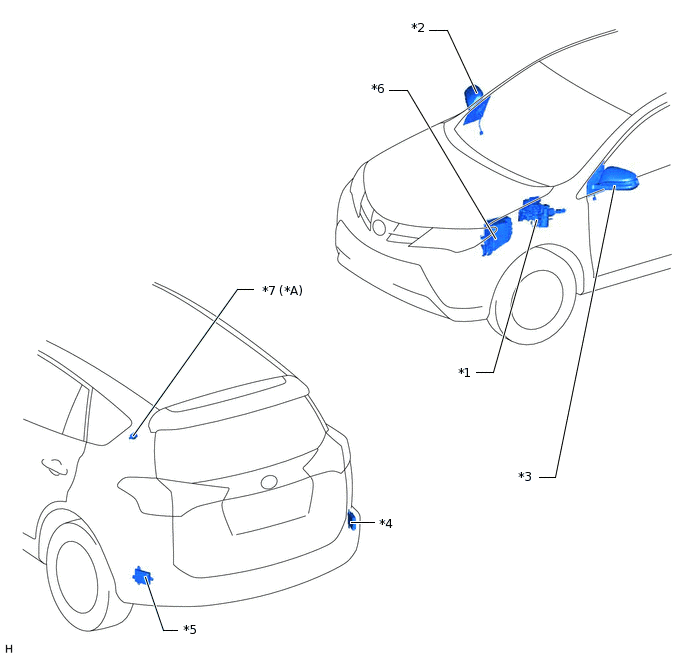

ILLUSTRATION

E342452C02

*A

w/ RCTA Function

-

-

*1

BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY

*2

OUTER REAR VIEW MIRROR ASSEMBLY RH

*3

OUTER REAR VIEW MIRROR ASSEMBLY LH

*4

BLIND SPOT MONITOR SENSOR RH

*5

BLIND SPOT MONITOR SENSOR LH

*6

ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY

  • - ECU-B NO. 1 FUSE

*7

RCTA BUZZER (BLIND SPOT MONITOR BUZZER)

-

-

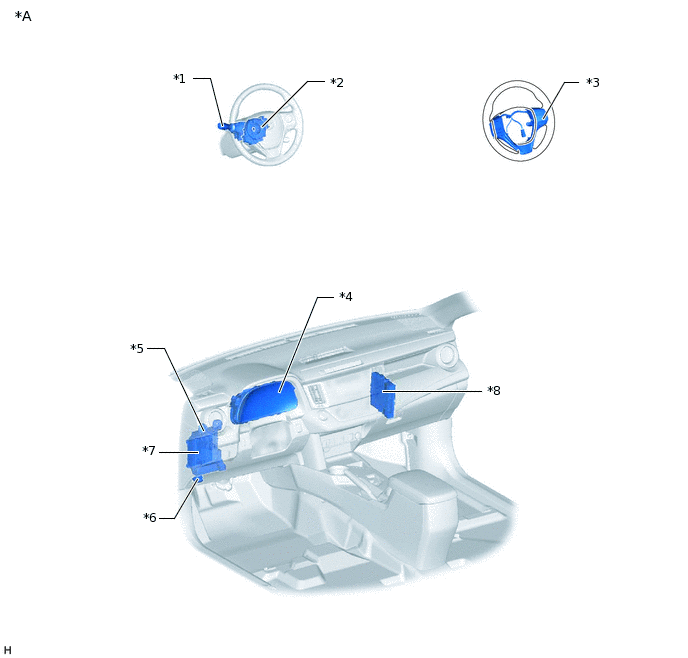

ILLUSTRATION

E342453C03

*A

for LHD

-

-

*1

HEADLIGHT DIMMER SWITCH ASSEMBLY

*2

SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

*3

STEERING PAD SWITCH ASSEMBLY

  • - BLIND SPOT MONITOR MAIN SWITCH

*4

COMBINATION METER ASSEMBLY

*5

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

  • - GAUGE FUSE

*6

DLC3

*7

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*8

HYBRID VEHICLE CONTROL ECU

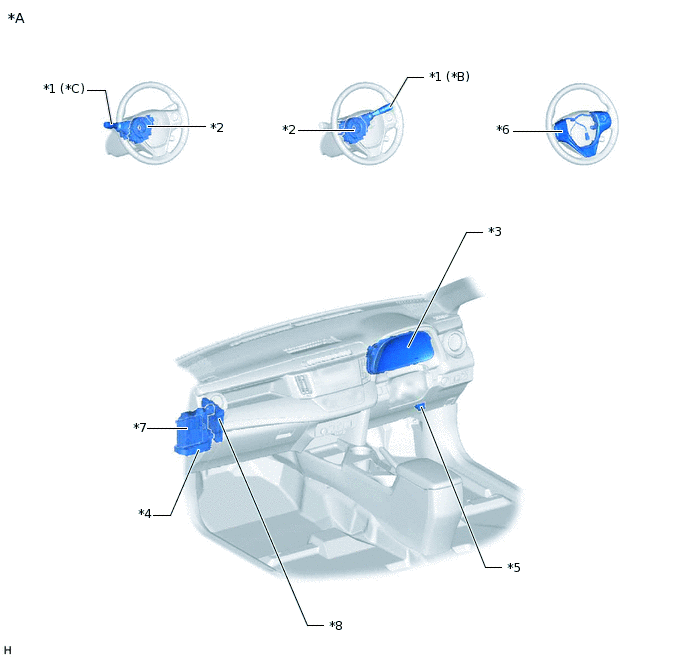

ILLUSTRATION

E342629C01

*A

for RHD

*B

for RH Side Type

*C

for LH Side Type

-

-

*1

HEADLIGHT DIMMER SWITCH ASSEMBLY

*2

SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY

*3

COMBINATION METER ASSEMBLY

*4

INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY

  • - GAUGE FUSE

*5

DLC3

*6

STEERING PAD SWITCH ASSEMBLY

  • - BLIND SPOT MONITOR MAIN SWITCH

*7

MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)

*8

HYBRID VEHICLE CONTROL ECU
