FRONT BRAKE FLEXIBLE HOSE INSTALLATION

CAUTION / NOTICE / HINT

Note


  • Because the left and right hoses are not interchangeable, verify the part number when installing the flexible hoses.

  • If the hoses are to be reused, connect them after checking the identification marks placed when each hose was disconnected.

Tech Tips


  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE


  1. INSTALL FRONT FLEXIBLE HOSE

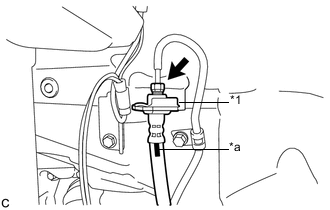

    1. A005ESBE02
      Text in Illustration
      *1 Clip
      *a Identification Mark

      Install a new clip to the front flexible hose.

      Note


      • Install the clip as far as it will go.

      • When installing the front flexible hose, face the identification mark to the outside of the vehicle and minimize twisting of the hose.

    2. Using a union nut wrench, connect the brake line to the front flexible hose while holding the flexible hose with a wrench.

      Torque:
      15 N*m  { 155 kgf*cm, 11 ft.*lbf }

      Note


      • Do not kink or damage the brake line.

      • Do not allow any foreign matter such as dirt or dust to enter the brake line from the clip or bracket.

      • Use the formula to calculate special torque values for situations where the union nut wrench is combined with a torque wrench Click here.

    3. A005E6CE03

      Install the front flexible hose to the steering knuckle with the bolt (B).

      Torque:
      19 N*m  { 192 kgf*cm, 14 ft.*lbf }

    4. Install the front flexible hose and front speed sensor bracket to the absorber bracket with the bolt (A).

      Text in Illustration
      *1 Front Speed Sensor Bracket
      *2 Front Flexible Hose Bracket
      Torque:
      19 N*m  { 192 kgf*cm, 14 ft.*lbf }

      Note

      Install the front flexible hose first and then the front speed sensor bracket.

    5. A005CFZ

      Connect the front flexible hose to the front disc brake cylinder assembly with a new union bolt and a new gasket.

      Torque:
      30 N*m  { 310 kgf*cm, 22 ft.*lbf }

  2. FILL RESERVOIR WITH BRAKE FLUID

  3. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Click here

  4. BLEED BRAKE LINE

    Click here

  5. INSTALL FRONT WHEEL

    Torque:
    103 N*m  { 1050 kgf*cm, 76 ft.*lbf }
