HEADLIGHT ASSEMBLY(for Halogen Headlight) DISASSEMBLY

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE NO. 1 HEADLIGHT BACK COVER

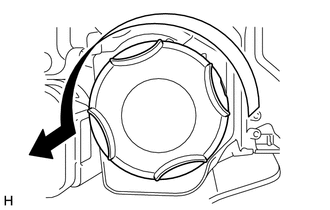

    E268812

    1. Turn the No. 1 headlight back cover in the direction indicated by the arrow to remove it.

  2. REMOVE NO. 1 HEADLIGHT BULB

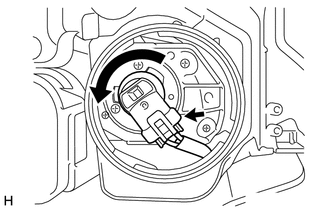

    E268814

    1. Disconnect the connector.

    2. Turn the No. 1 headlight bulb in the direction indicated by the arrow to remove it.

      Note:

      Do not touch the glass part of the bulb.

  3. REMOVE NO. 2 HEADLIGHT BACK COVER

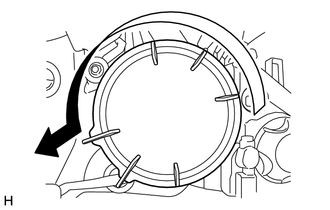

    E268808

    1. Turn the No. 2 headlight back cover in the direction indicated by the arrow to remove it.

  4. REMOVE NO. 2 HEADLIGHT BULB

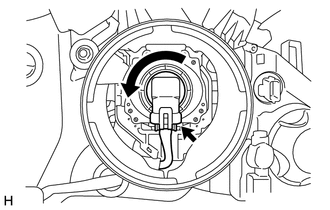

    E268810

    1. Disconnect the connector.

    2. Turn the No. 2 headlight bulb in the direction indicated by the arrow to remove it.

      Note:

      Do not touch the glass part of the bulb.

  5. REMOVE CLEARANCE LIGHT SOCKET

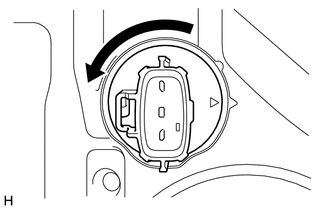

    E268820

    1. Turn the clearance light socket in the direction indicated by the arrow to remove it.

  6. REMOVE CLEARANCE LIGHT BULB

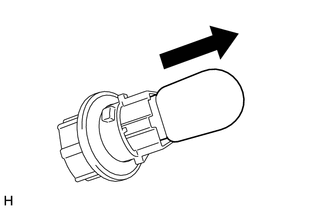

    E268822

    1. Remove the clearance light bulb from the clearance light socket.

  7. REMOVE FRONT TURN SIGNAL LIGHT SOCKET

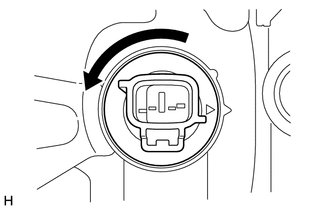

    E268816

    1. Turn the front turn signal light socket in the direction indicated by the arrow to remove it.

  8. REMOVE FRONT TURN SIGNAL LIGHT BULB

    E268818

    1. Remove the front turn signal light bulb from the front turn signal light socket.
