REAR BUMPER DISASSEMBLY

PROCEDURE

  1. REMOVE NO. 4 FLOOR WIRE (w/ TOYOTA Parking Assist-sensor System)

    Click here

  2. REMOVE NO. 1 ULTRASONIC SENSOR (w/ TOYOTA Parking Assist-sensor System)

    Click here

  3. REMOVE ULTRASONIC SENSOR RETAINER (w/ TOYOTA Parking Assist-sensor System)

    Click here

  4. REMOVE REFLEX REFLECTOR ASSEMBLY LH

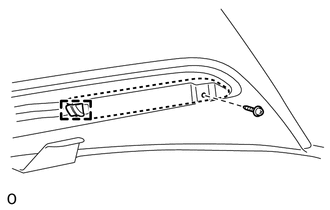

    B340168

    1. Remove the screw.

    2. Detach the guide and remove the reflex reflector assembly.

  5. REMOVE REFLEX REFLECTOR ASSEMBLY RH

    Tip:

    Use the same procedure described for the LH side.
