OUTER REAR VIEW MIRROR GLASS REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE OUTER MIRROR

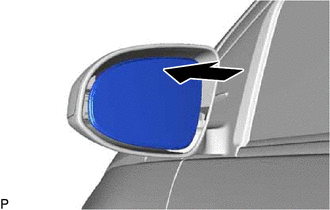

    1. B370084

      Push the upper part of the mirror surface to tilt the outer mirror.

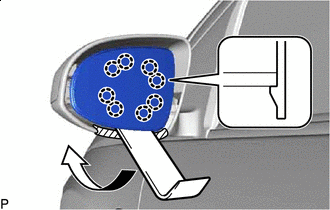

    2. B370085C01
      V100155

      Protective Tape

      Apply protective tape to the area shown in the illustration.

    3. Using a moulding remover, disengage the 8 claws and remove the outer mirror.

      Note:

      Do not pull the outer mirror with excessive force. Doing so may break the mirror surface.

    4. w/ Mirror Heater:

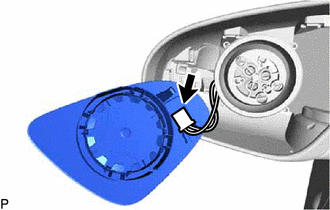

      1. B370087

        Disconnect the connector and remove the outer mirror.
