SIDE AIRBAG SENSOR(for Center Pillar) COMPONENTS

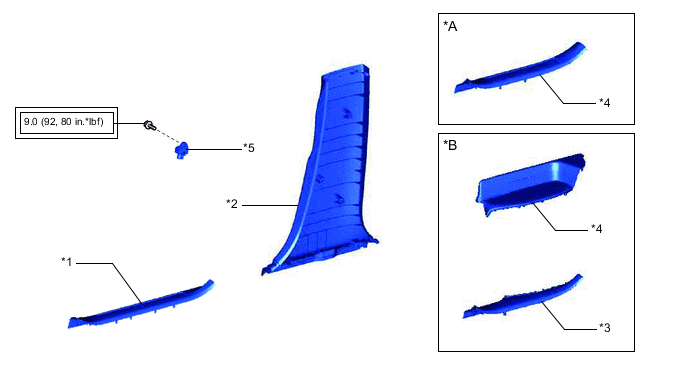

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | *B | w/ Rear No. 2 Seat |
| *1 | FRONT DOOR SCUFF PLATE | *2 | LOWER CENTER PILLAR GARNISH |
| *3 | REAR DOOR INSIDE SCUFF PLATE | *4 | REAR DOOR SCUFF PLATE |
| *5 | SIDE AIRBAG SENSOR ASSEMBLY | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
