POWER OUTLET SOCKET(for Console Box Rear Side) REMOVAL

PROCEDURE

  1. REMOVE CONSOLE REAR END PANEL SUB-ASSEMBLY

    Click here

  2. REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY

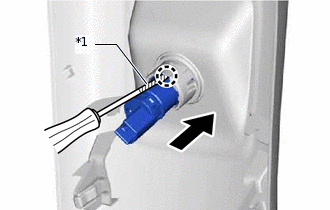

    1. B420784C01

      *1

      Protective Tape

      Using a screwdriver, detach the claw to remove the rear No. 1 power outlet socket assembly.

      Tip:

      • Tape the screwdriver tip before use.

  3. REMOVE REAR POWER OUTLET SOCKET COVER

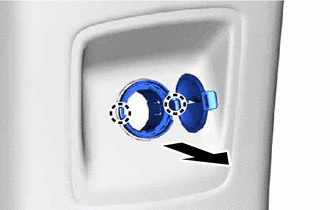

    1. B420786

      Detach the 2 claws and remove the rear power outlet socket cover.
